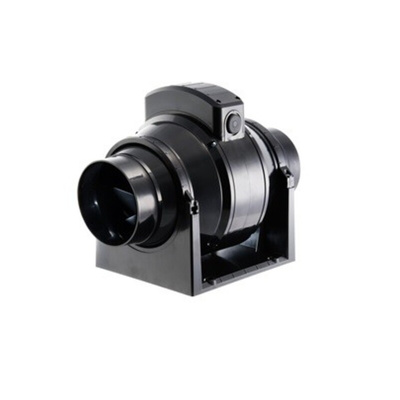

RS PRO Round In Line Extractor Fan, 245m³/h, 20dB, Double Insulated with Motor Fitted, Duct Size 100mm

RS PRO Mixed Flow Extraction Fans

When it comes to commercial extractor fans look no further than RS PRO. We are proud to introduce a range of mixed flow ceiling extractor fans for use in applications such as changing rooms, shower rooms, and bathrooms. These high-quality extractor fans are commonly located in ceilings and lofts with an ’inline’ install using ducting. The primary purpose of the kit is to provide ventilation for fumes, smells, and steam, via the greater working pressures produced in comparison to conventional axial fans.

Features and Benefits

• Mixed flow fan - 100 mm


• High airflow


• The body can rotate to accommodate tight space


• Integral footplate


• Fast mounting


• Spigot designed for quick install of flexible ducting


• 3 fan speeds


• Compact dimensions


• Overrun timer option available (RS stock no: 219-2981)

Timer Option

The overrun timer keeps the fan running for up to 20 minutes after the power is switched off, this is set upon installation.

Specification

• Double Insulated with motor fitted - Thermal Protection


• Rated Voltage 220-240 V -50Hz


• High Rated Wattage 25 W


• Low Rated Wattage 20 W


• Low-Speed Noise Level 20dB(A) at 3m


• High-Speed Noise Level: 24dB(A) at 3m


• Air Flow: 245 m³/h


• IPX4 rated CE marked

RS PRO Mixed Flow Extraction Fans Variants

• RS PRO 100 mm Mixed Flow Extraction Fan; RS stock no: 219-2980


• RS PRO 100 mm Mixed Flow Extraction Fan with Timer; RS stock no: 219-2981

Applications

• Changing rooms


• Shower rooms


• Bathrooms

Why would you choose RS PRO for Extractor Fans?

Our range of extractor fans has been selected for their high-quality and performance. We understand that quality is of great importance and have ensured that all RS PRO extractor fans are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.
