FN2080-16-06, Schaffner, FN2080 16A 250 V ac/dc 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase, Фильтр

FN 2080 Series

Premium range of EMI filters from Schaffner. The FN2080 two-stage filters are designed for easy and fast chassis mounting. All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.

Can be used in a wide range of applications such as electrical and electronic equipment, building automation, industrial applications, machinery, medical equipment, office automation and various noisy applications requiring good filter performance.

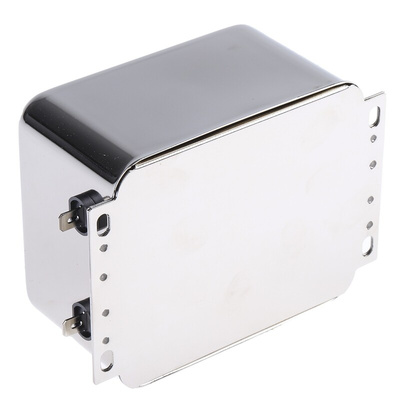

Two-stage chassis mount filters in aluminium case
Inductance values in the second stage (differential mode) are selected to provide excellent wide-band filtering
Connection by 0.25in Faston terminals
Good low frequency attenuation
Optional medical versions (B type) & safety versions (A type) available

Approvals

UL recognised, CSA Certified, VDE

Schaffner Voltage Rating Filter Labels PCN

Schaffner Filter Labels Update PCN

Datasheet
