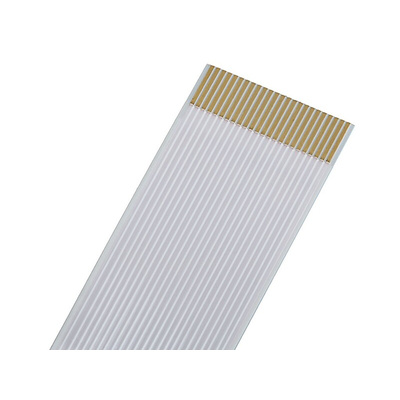

150200275, Molex FFC Ribbon Cable, 26-Way, 0.5mm Pitch

Molex Ribbon Cable, 60V AC Maximum Voltage, 0.5A Current Per Contact - Premo-Flex Series - 150200275

When you're building portable equipment, this nifty ribbon cable from Molex helps you keep the electronics compact. It features 26 circuits with a small pitch of 0.5mm, enabling you to complete complex interconnections in tight spaces. The cable is flat, with an end thickness of just 0.30mm, and easily bendable with a durability of 50,000 flexing cycles. This means you'll have no trouble routing it around components when you're linking PCBs.

Features & Benefits

• Wide operating temperature range between -40°C and +105°C for use in demanding applications
• Same-side contacts for straightforward board-to-board connections
• Contact current of 0.5A enables it to power components
• Crimp-quality cable for speedy termination

Applications

• Automotive industry
• Domestic appliances
• Industrial automation
• Medical technology
• Computing and networking

What's the advantage of gold plating on the mating?

The gold plating on the mating section of this cable maximises conductivity and keeps your connections resistant to corrosion.
