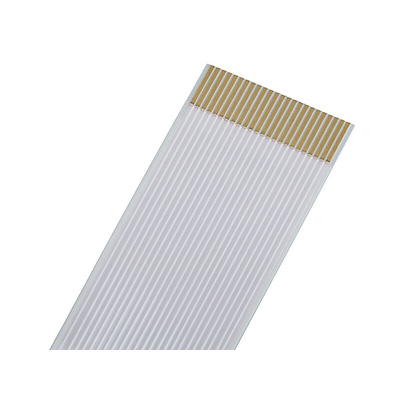

150200385, Molex FFC Ribbon Cable, 36-Way, 0.5mm Pitch

Molex Ribbon Cable, 76mm Length, 36 Circuits - Premo-Flex Series - 150200385

Keen to streamline your board-to-board connections? Use this ribbon cable from Molex. As it's a 36-way unit, it simplifies your layout and maximises installation space. Highly conductive gold-plated contacts send reliable signals between circuit cards for top-notch performance. This plating also protects the contacts against wear and overheating. Just insert the ends into compatible connectors (such as 178-8780) to achieve efficient communication.

Features & Benefits

• 76mm length for easy reach between boards without bunching
• Dependable performance in demanding temperatures between -40°C and +105°C
• Tips the scales at just 0.917g, adding little strain to your assemblies
• Type-A design means its contacts are the same side, so it's a breeze to wire to a PCB

Applications

• Automotive manufacturing
• Aerospace systems
• Medical instruments
• Testing and measuring equipment

Do I have to terminate individual wires when using this ribbon cable?

No, it comes pre-assembled to save time and effort. Just connect it and you're all set.

Datasheet - 150200385
