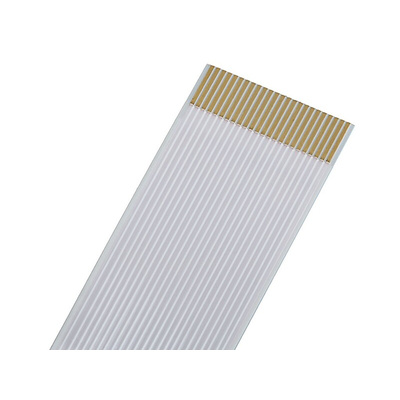

150201168, Molex FFC Ribbon Cable, 45-Way, 0.5mm Pitch

Molex Ribbon Cable, -40°C Minimum Operating Temperature, 0.5A Maximum Current Per Contact - 15020 Series - 150201168

Unite your internal peripherals and PCBs using this ribbon cable from Molex. It has 45 contacts to conveniently control multiple circuits simultaneously. The polyester insulation shrugs off chemicals and moisture, so you get long-lasting service, even in challenging conditions. A maximum voltage of 60V AC means this is a suitable option for use with low-voltage applications. You can pair it with a compatible Easy-On connector (such as 788-3622) to make a reliable board-to-board connection.

Features & Benefits

• Pitch size of 0.5mm keeps conductors apart to prevent arcing or short circuits
• Gold-plated contacts for high conductivity and corrosion resistance
• Performs reliably in an operating temperature range between -40°C and +105°C

Applications

• Aviation systems
• Computer networks
• Data centres
• Automotive industry

What is an FFC cable?

An FFC cable like this one is a flat and flexible type that bends and folds easily without suffering damage or loss of electrical performance.

Datasheet - 150201168
