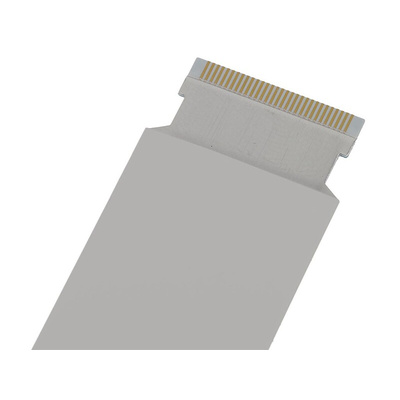

150221230, Molex FFC Ribbon Cable, 30-Way, 0.5mm Pitch

Molex Ribbon Cable, 305mm Length, Gold-Plated Contacts - 15022 Series - 150221230

Searching for an efficient board-to-board connection? Tie things together with this handy ribbon cable from Molex. Its flat and flexible design maximises limited PCB space by placing 30 small-grade conductors side by side. As it uses the LVDS standard, it supports super-fast data transfers at less power cost, meaning you get high performance from a small package. Strong signals come courtesy of highly conductive gold-plated contacts. This makes the cable a good choice for HD video displays where a reliable connection is key.

Features & Benefits

• Sturdy polyester sheath protects against wear and abrasion
• Maximum voltage rating of 30V AC to handle high-powered systems
• Performs reliably in an operating temperature range between -40° and +80°C

Applications

• Commercial lighting installations
• Audio/visual equipment
• Data and computing networks

What pitch does the ribbon cable have?

The mating pitch between each connector is just 0.5mm, making this flat cable a compact choice for crowded circuit boards.

Datasheet - 150221230
