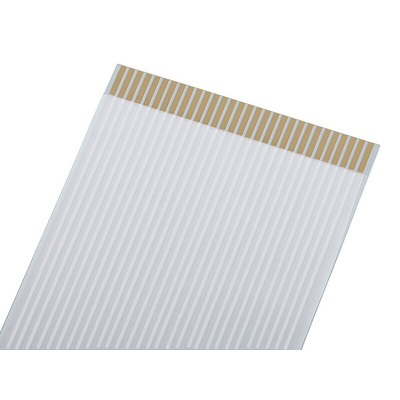

150390271, Molex FFC Ribbon Cable, 12-Way, 1mm Pitch

Molex Ribbon Cable, Flexible, 76mm Cable Length - 15039 Series - 150390271

Are your board-to-board connections tying you up in knots? Turn to this Molex ribbon cable for a helping hand. Its 12-circuit setup reduces wiring complexity, as you only need to connect one cable, which speeds up installation time. You also cut down on the chance of splicing errors, which boosts the efficiency of PCB termination. As this assembly is highly flexible, you can bend it up to 50,000 times without worrying about it cracking.

Features & Benefits

• Broad operating temperature range between -40°C and +105°C makes it suitable for use in harsh settings
• Maximum current per contact of 1.2A for compatibility with demanding systems
• Low mating pitch of 1mm to maximise board-packing efficiency

Applications

• Networking centres
• Electronics manufacture
• Medical equipment
• Industrial automation

What type of contacts does this ribbon cable have?

It has gold contact plating, so you benefit from reliably high electrical conductivity, as well as corrosion resistance.

Datasheet - 150390271
