RS PRO Thermocouple Wall Port with Dual Integral Type K Thermocouples for Use with Legionella

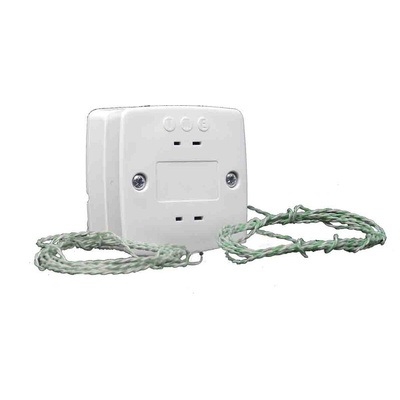

RS PRO Dual TC Wall Port with Integral K Fine Wire Probes

Introducing from RS PRO the dual TC wall port with Integral K fine wire probes. This device is designed to offer access to difficult to reach or inaccessible temperature monitoring points such as boxed-in TMV’s, calorifier feed, and return pipes or water tanks located at height.

Why would you choose this Wall Port Probe?

The TC Wall Port is ideal for facilities management applications and can help save time by eliminating the need to repeatedly dismantle panels or work at height. This low-cost, unobtrusive device is simple to install and require little to no maintenance once installed.

Key Features

• Temperatures can be monitored from up to 20m away with no loss of accuracy


• Dual TC Wall Port with integral fine wire probe combines two fine wire sensors and dual socket thermocouple connection points for ease of installation and to save time.

Features and Benefits

• Made from durable ABS plastic


• Splash-proof


• Suitable for difficult to reach temperature monitoring points


• Low-cost


• Front plate space for location/identification barcode or label


• Comes with an integral 2 x 1m fine wire thermocouples


• Can be used with any thermocouple thermometer (connection cable required)


• Easy installation

Specification

• Series: TCWALLPORT-D-KA01-01


• Probe Type: Fixed point connection box with fine wire thermocouples


• Sensor Type: Type K Thermocouple


• Minimum Temperature Measurement: -100 °C


• Maximum Temperature Measurement: 250 °C


• Response Time: 0.1 Secs (96% value in moving gas)


• Best Accuracy: ±1.5⁰C (±0.25%)


• Accuracy Class: Class I


• Connector Type: Mini socket


• Operating Temperature: -100 to 50 °C


• Storage Temperature: -100 to 50 °C

RS PRO Dual TC Wall Port Variant

• RS stock no: 219-5355

Compatible Digital Thermometers

• RS PRO Legionella Digital Thermometer with Integral Timer - RS stock no: 204-8413


• RS PRO MM2000 Single Input Thermometer - RS stock no: 204-8410


• RS PRO MM2010 Multifunction Thermometer - RS stock no: 204-8415


• RS PRO Barcode Scanning Digital Thermometer with Bluetooth - RS stock no: 204-8411


• RS PRO MM2030 Thermocouple Simulator Thermometer - RS stock no: 204-8417

Applications

• Facilities Management


• Legionella

Why would you choose RS PRO for Temperature Probes?

RS PRO offers a wide range of Temperature Probe products to suit your applications. Our range has been selected for its high quality and compatibility with digital thermometers. We understand quality is of great importance to any engineer and have ensured that all RS PRO probes are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.
