A01ES-DM+A0154B-D+A01YL1, APEM A01ES Series Twist Release Emergency Stop Push Button, Panel Mount, 16mm Cutout, 2NC, IP65

AO1 Series Switches - 16mm Operators

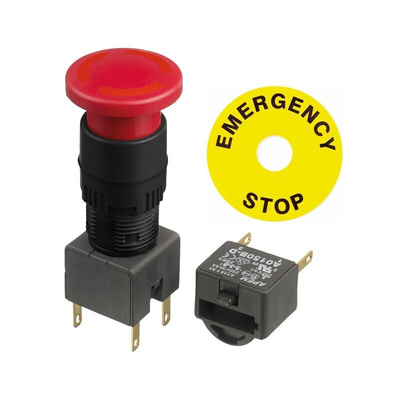

Modular construction illuminated and non illuminated Pushbutton, Keylock, Rotary and Emergency Stop switches to fit industry standard 16mm diameter cut-outs. Round, square and rectangular operators can be fitted to single, double, three and four pole switch blocks for a variety of applications. A complete Pushbutton switch assembly requires an operator, switch block, lens and lamp (if illuminated). Keylock and Rotary switches require an operator and switch block, while the Emergency Stop switch comes as a complete assembly supplied with a double pole N/C switch block and a yellow self adhesive label.

Panel sealing to IP65
Gold plated silver contacts
Pushbuttons illuminated with T1 midget groove filament lamp or LED
Keylocks supplied with 2 keys
Rotary lever switches 219-5784 & 219-5762 feature CW lever rotation, all others are CCW lever rotation
For switch blocks & lenses see stk nos 219-5829 & 239-3483 typically
Selection of accessories includes flipguards, flush mounting bezels, PCB sockets and installation tools, see stk nos 278-1262, 325-2800, 325-2816 & 241-5757 typically

Note

Single and double pole PCB socket accessories are suitable for illuminated pushbuttons only.

Approvals

BEAB, VDE, UL & CSA (Emergency Stop, VDE, UL & CSA only)

Features and Benefits

•Operating temperature : -20°C to +55°C
•Sealing options : front panel IP65, rear panel IP40 according to EN60947-5-5
•Electrical function : push to shut off, twist to release
•Current/voltage rating : AC-15 1,5A 250VAC, 6A 250VAC
•Electrical life : 6.050 cycles
•Insulation resistance : 50MΩ min
•Dielectric test voltage : 2900V
•Mechanical life : 6050 cycles
•Operator case : polyetherimide
•Actuator : polycarbonate
•Switch block : PBT
•Panel seal : neoprene

Frequently asked questions & answers

What is the different between a push button switch for an emergency stop and a general-purpose push button switch?
A general-purpose push button switch is used for controls, e.g. to start machine operation or simply to switch modes. An emergency stop push button switch however, is mainly used as a safety measure to stop hazardous events.
What is Trigger Action?
A standard operator can be teased enough to open a normally closed contact without latching into the depressed position. Trigger action units are spring loaded so they only depress the contact block after it latches into the depressed position.

VDE 94542

UL RECOGNISED E151248(M)

DEMKO 133402-01

Machine Guarding and Safety Range Overview

Product Change Notification

Datasheet

A01ESD Datasheet

Product Change Notification
