S15LGYPQ, Banner S15L Series M12 Connector Sensor Status Indicator, CE Standard, Разъем

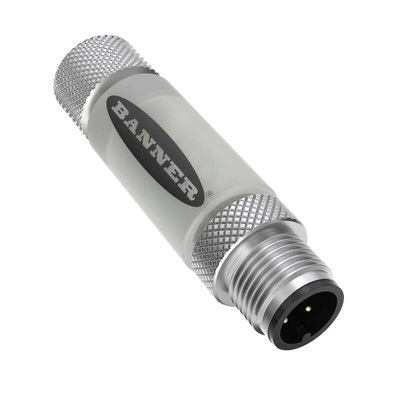

Banner Status Indicator, For In-Line Sensors, 10 to 30V DC Voltage - S15L Series - S15LGYPQ

Need to check on your automated handling processes at a glance? Fit this status indicator from Banner. By switching between green and yellow colours, the device clearly displays its power and sensor output status to provide efficient system signalling. Thanks to built-in LEDs, the unit shines brightly to stand out in all lighting conditions. Fitting it to a sensor is done in a jiffy using its handy quick-disconnect port. As shown by an IP67 rating, the module is fully protected against heavy dust and temporary water submersion, so you can trust it to handle challenging industrial environments.

Features & Benefits

• Nickel-plated brass fittings resist corrosion to stay strong in damp conditions
• Industry-standard M12-thread connection plugs hassle-free into compatible equipment
• Robust polyurethane housing withstands impacts
• Slim measurements of 57.8 (length) x 15mm (diameter) to slot into busy setups
• Wide operating temperature range between -40°C and +50°C for use in challenging applications

Applications

• Warehouses and logistics facilities
• Fluid management systems
• Automotive manufacturing

Does this status indicator come with protection against wiring errors?

Yes, it has built-in reverse-polarity protection to minimise the risk of damage from incorrect wiring.

Datasheet - S15L Series

Line Drawing - S15LGYPQ
