LIQ-100, Fluke Networks Cable Tester RJ45, LinkIQ

LinkIQ Cable and Network Tester Kit

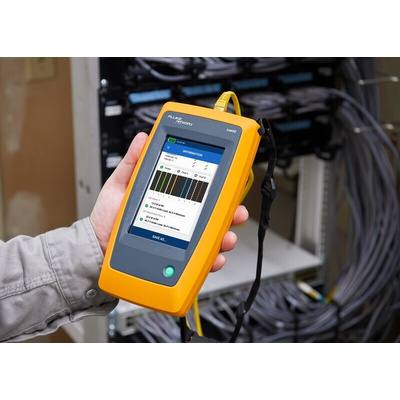

The Fluke Networks LinkIQ Cable + Network tester is the testing solution to verify cable performance up to 10 Gb/s and solve network connectivity problems. LinkIQ validates cable performance using frequency-based measurements and provides distance to fault information along with a wire map of the cable under test.
The LinkIQ™ Cable+Network Tester validates cable performance up to 10GBASE-T via frequency-based measurements.

The LinkIQ™ also provides IPv4 and v6 ping; nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates); Power over Ethernet testing (Hardware/Software negotiation and loaded voltage and power tests).

Features and Benefits:

• Cable Performance testing up to 10GBASE-T via frequency-based measurements
• Displays cable length, wire map, and distance to open or short
• Network features including: IPv4 and v6 ping, nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates).
• Ethernet Alliance certified PoE Verification – Detects the PoE class (1-8) and power, and performs a load test of available PoE from the connected switch
• Graphical wire map and length test to identify common faults that occur with cabling installation
• Manage results and print reports from LinkWare™ PC
• Language support - the LinkIQ user interface now supports 12 languages
• Rechargeable Li-Ion battery
• Charging via standard USB-C port
• Display 800 x 480 colour capacitive multi touch
• Dimensions 8.5 in x 4.5 in
• Battery: Lithium-ion, 3.6 V, 6400 mAh; Life: 8 hours typical
• Charge time: 4.5 hours
• Charging temperature range: 0 °C to +40 °C

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Note

If your unit does not have LinkIQ v1.1 automatically installed, this can be upgraded free of charge by visiting: https://www.flukenetworks.com/support/downloads

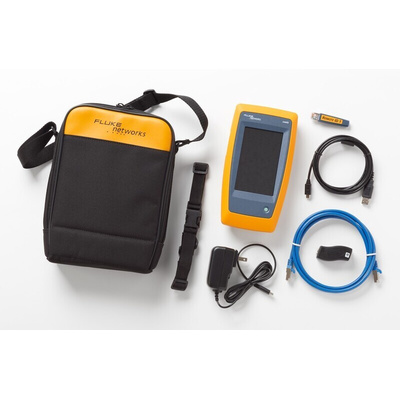

Supplied with
type":"Supplied with",

LinkIQ Cable+Network Tester with Remote ID 1
Quick Reference Guide
USB-C to USB-A cable
Charging cable,
Cat6A patch cord,
RJ45/11 Modular Adapter
Hanging strap with Remote ID holder
Carrying Case

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4

Datasheet - LIQ-100

Users Manual
