QUARTZ-GOLD-GW21-LTE4(EU) + ACC, Siretta QUARTZ-GOLD-GW21-LTE4 (EU) + ACCESSORIES 3G, 4G, 1 x WAN/1 x LAN, 2 x LAN Ports

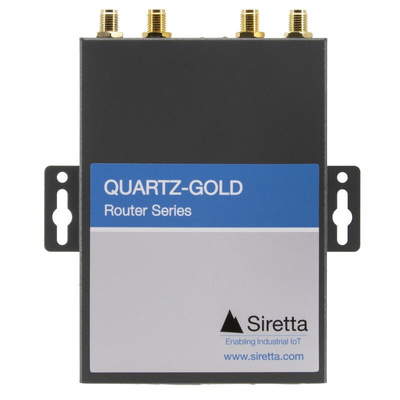

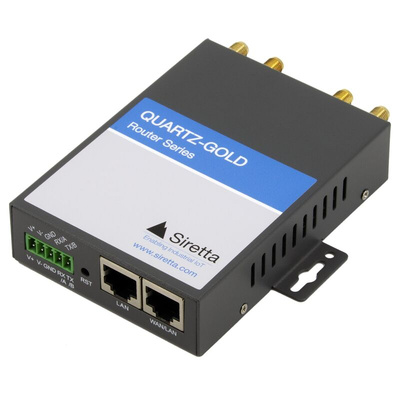

Siretta QUARTZ-GOLD 4G GbE LAN WiFI GPS Router With Accessories

The QUARTZ-GOLD router meets many of the needs for management of remote systems and communication channels and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring, and many other IoT mobile broadband applications.
The QUARTZ-GOLD router comes as standard with a single SIM slot, dual port gigabit ethernet capability and 2.4GHz and 5GHz Wifi.
In addition the QUARTZ-GOLD supports RS232 serial connectivity as standard (RS485 can be ordered as an option)

Features & Benefits

European 4G LTE bands
2.4 GHz and 5 GHz Wi-Fi support
GPS Capability
Dual Gigabit LAN
RS232 (RS485 an option)
Compact Design
High speed data via LTE network
Strong resistance to electromagnetic interference
Built-in watch dog, multi-link detection
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec

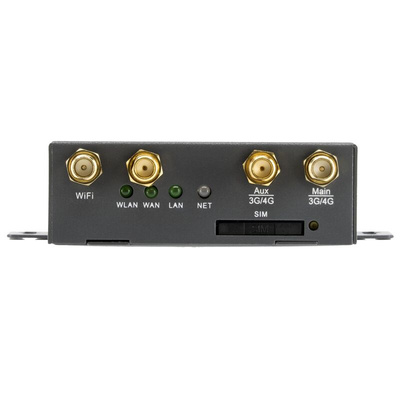

Physical Interfaces

2 x 10/1000 RJ-45 Ethernet Interfaces
1 ´ Standard SIM/R-UIM interface
2 x RP-SMA (Male) Wi-Fi Interface
1 ´ SMA (Female) Cellular interface
1 ´ SMA (Female) GPS interface
1 ´ DC Power Interface (7.5 to 32 V DC)

The Siretta QUARTZ-GOLD router is a high performance industrial router designed for transferring large amounts of data via the European LTE Cat 4 cellular network, with dual built in Gigabit Ethernet ports. The QUARTZ-GOLD’s fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fall-back to 3G/UMTS communication, should 4G/LTE be unavailable. It is well suited for IoT/mobile broadband applications, offering reliable, secure wireless connectivity.

Applications

Payment Services
Vending machine connectivity
Retail POS
Internet based Video surveillance
Digital signage

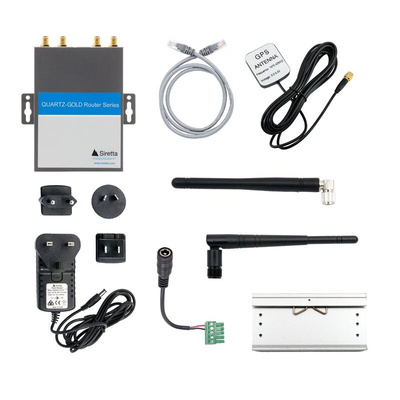

Accessories Included

1 x Cellular Antenna
1 x WiFi Antenna
1 x GPS Antenna
1 x LAN Cable
1 x Power Block Interface
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
RoHS
EN61000-6-2

QUARTZ GOLD LTE4 EU Datasheet

QUARTZ GOLD Quick Start Guide

QUARTZ GOLD Hardware Manual

QUARTZ GOLD Software Manual
