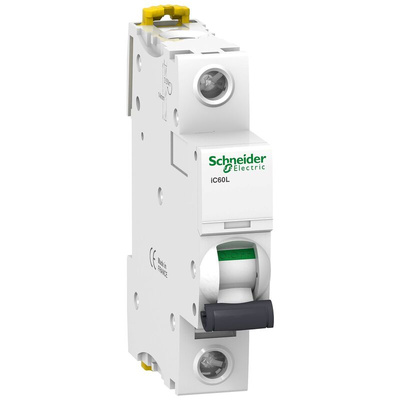

A9F94110, Schneider Electric Acti 9 iC60L MCB, 1P, 10A Curve C, 240V AC, 15 kA Breaking Capacity

Schneider Electric MCB, 1 Pole, 85 (L) x 18mm (W) - Acti 9 Series - A9F94110

Use this MCB from Schneider Electric as a first line of defence against damage caused by current surges. When it receives an overcurrent, the internal bimetallic strip heats up and bends, cutting the power supply to attached circuits. Resetting this unit is a cinch as you just need to flip the built-in toggle switch to get it back in action. As it's a type-C MCB, it trips at between five and ten times the rated load current of 10A, making it suitable for high-power electrical systems.

• Top and bottom terminal connections for versatile wiring
• IP20 rating indicates it's touch-proof and protected against solid objects over 12mm
• Integrated contact position indicator for easy status monitoring
• DIN rail mounting for tool-free installation
• Mechanical lifespan of 20,000 cycles for long-term use

Applications

• Assembly plants
• Process control automation
• Household power supplies

The Schneider Electric Acti9 iC60L miniature circuit breaker is the safest, simplest and most efficient system for power distribution solutions. It delivers complete industry approved protection. It is perfect for commercial and industrial applications.

How big is this MCB?

It guarantees total safety during maintenance
It guarantees long life service
It has fast closing mechanism
It prevents unnecessary trips
It is easy to operate
It is easy to upgrade

Thanks to its compact dimensions of 85 (L) x 18 (W) x 78.5mm (D), you can easily fit this MCB onto a busy DIN rail.

What's the breaking capacity of this MCB?

It has a breaking capacity of 15kA, which is the maximum current surge it can cut short without being damaged.
