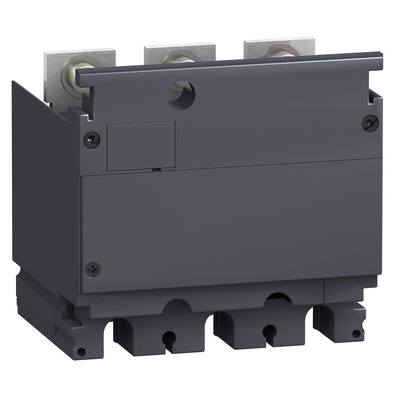

LV430561, Schneider Electric ComPact NSX Series Current Transformer, 150A Input, 150/5A, 5 A Output

The Schneider Electric additional current transformer module with voltage measurement output of 150A rating for 3 poles Compact NSX 160 devices. The current at the secondary winding is 5A. The rated voltage is 530VAC 50/60Hz. There are 3 voltage outputs including protection with automatic reset, that can be used only for voltage measurement. The power consumption accuracy is 5VA (class 3). There is a class II insulation level between the front face and the power circuits.

This module enables direct connection of a measurement device such as an ammeter
The module is installed directly on the downstream circuit breaker power terminals
The protection degree is IP40
