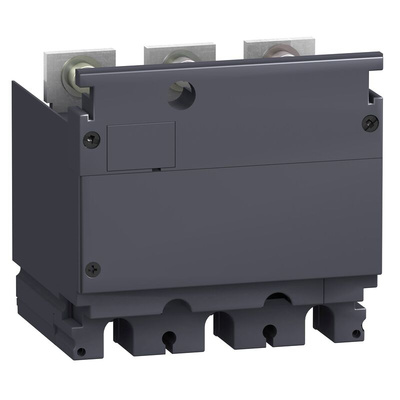

LV431569, Schneider Electric ComPact NSX Series Current Transformer, 250A Input, 250/5A, 5 A Output

The Schneider Electric additional current transformer module of 250A rating for 3 poles Compact NSX100..250 devices. The current at the secondary winding is 5A. The power consumption accuracy is 5VA (class 3). There is a class II insulation level between the front face and the power circuits.

This module enables direct connection of a measurement device such as an ammeter
The module is installed directly on the downstream circuit breaker power terminals
The protection degree is IP40

Datasheet - LV431569

Product Environmental Profile
