1492-P6PD2E-6B, Rockwell Automation 1492-P Series Grey Feed Through Terminal Block

Rockwell Automation IEC 1492-P6PD2E-6B Feed-Through Push-in Terminal Block

For a high-quality connection that helps you to save wiring time, use the 1492-P6PD2E-6B terminal block by Rockwell Automation in your application.

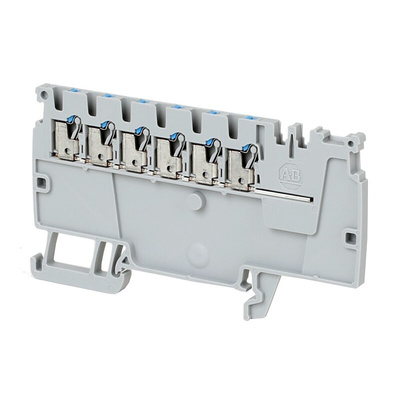

The 1492-P6PD2E-6B module is a Feed-Through Terminal Block in grey. It has a compact size and allows quick and effortless wiring as it uses push-in technology. To operate, press the actuator to open the clamp and insert the wire. The steel clamp holds the wire onto the current bar connection.

The 1492-P6PD2E-6B unit is a Control Power Distribution block. It features 6 blue connection points. This terminal block can be mounted on a DIN rail, enabling highly efficient organisation of your system.

The wire strip length is 0.31 in. (8 mm). This terminal block has a housing temperature range of -60…130 °C (-76…266°F). The current capacity is 13A.

Dimensions (W x H x L): 3.5 x 48 x 85.5 mm
Package Quantity: 50

The 1492 terminal block family by Rockwell Automation is designed to meet recognised international IEC, UL, CSA and ATEX standards, giving you solutions which provide optimal reliability for your control cabinet.

Features and Benefits:

• Easy mounting via DIN rail
• Plastic actuator improves shock prevention
• Wiring is simple and secure due to push-in connection
• No retightening needed and low insertion force
• Clear visibility of terminals on the front

What does a terminal block do?

Terminal blocks are modular components which secure two or more wires together inside an insulated frame. They keep wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. Troubleshooting and maintenance is made easy with these devices as the wiring can be easily connected or disconnected within the block. Different termination types are also available, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-efficient type of connector.

Datasheet-1492-P6PD2E-6B

Bulletin 1492-P Push-in Terminal Blocks
