1492-PD3, Rockwell Automation 1492-P Series Grey Feed Through Terminal Block

Rockwell Automation IEC 1492-PD3 Double-Level Push-in Terminal Block

If you need a terminal block which offers greater wiring efficiency and connection reliability then the 1492-PD3 push-in terminal block by Rockwell Automation is an ideal choice.

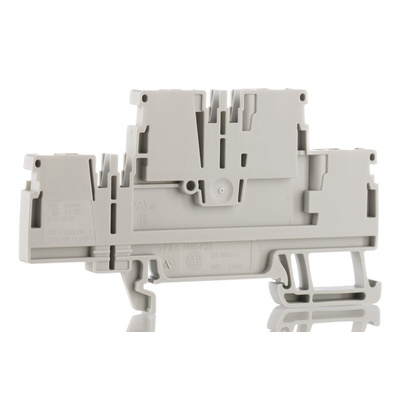

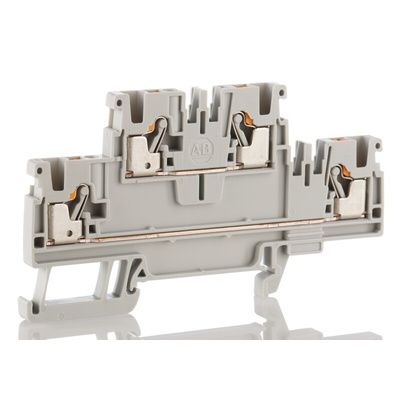

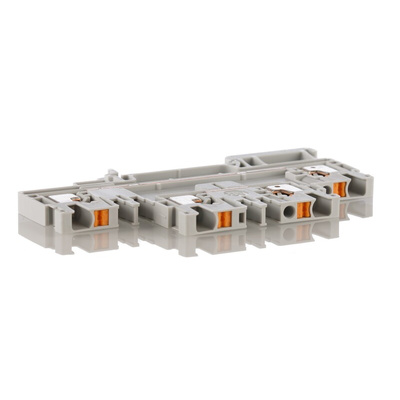

The 1492-PD3 module is a double level feed-through terminal block, in grey. This terminal block features convenient push-in connection technology, which provides one-hand, one-second insertion. With this unit there is no need to re-tighten, and it requires low insertion force. It saves up to 65% installation time when used with a ferrule. The wire strip length for this terminal block is 0.4 in. (10 mm).
Dimensions (W x H x L): 5.1 x 50.5 x 90 mm

Features and Benefits:

• Housing temperature range of -60 to 130°C (-76…266°F)
• Can be mounted easily and quickly via DIN rail
• Compact size offers space-savings
• Maximum current capacity rating of 20A
• Uses plastic actuators for shock prevention

What is a DIN rail?

A DIN rail is a component rail-mounting system for equipment cabinet racks. ’DIN’ refers to ’Deutsche Institut für Normung’, which is a global industry standard. They are made up of a long metal strip to which electrical and industrial control products can be attached, such as terminal blocks, circuit breakers, power supplies, and more. They are a convenient mounting method as components can be snapped or slid into place, and they are also space-saving.

Datasheet-1492-PD3

Bulletin 1492-P Push-in Terminal Blocks
