1492-PG31P, Rockwell Automation 1492-P Series Green/Yellow Feed Through Terminal Block

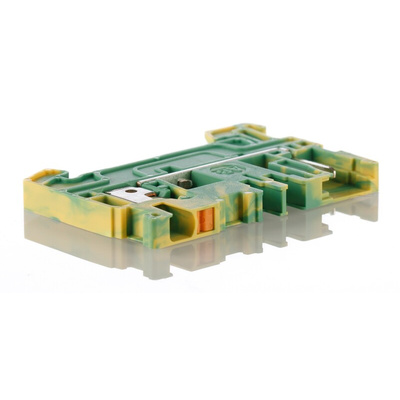

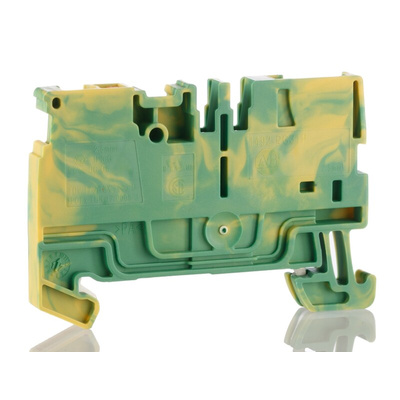

Rockwell Automation 1492-PG31P Single-Level Flex Plug-In Grounding Terminal Block

Offering greater protection, time-savings, and ease-of-use, the 1492-PG31P single-level grounding terminal block by Rockwell Automation is an ideal addition to your control cabinet.

The 1492-PG31P unit is a compact feed-through terminal block which uses innovative push-in connection technology, offering one-hand, one-second insertion to save wiring time. It includes easy-to-see terminals on the front.

Plastic actuators are included for shock prevention, making this terminal block a safe solution for your wiring system. The voltage rating for this block is 600V. The wire strip length is 0.4 in (10 mm) and the wire range is 2.5 mm² (AWG 28 - AWG 12).
Dimensions (W x H x L): 5.1 x 36.5 x 55 mm

Features and Benefits:

• Green/Yellow body allows easy visibility and identification
• Effortless and fast mounting via DIN rail
• Wide housing temperature range of -60 to 130 °C (-76…266°F)
• Up to 65% quicker installation when using a ferrule
• Low insertion force needed and no retightening necessary

What is a DIN rail?

A DIN rail is a component rail-mounting system for equipment cabinet racks. ’DIN’ refers to ’Deutsche Institut für Normung’, which is a global industry standard. They are made up of a long metal strip to which electrical and industrial control products can be attached, such as terminal blocks, circuit breakers, power supplies, and more. They are a convenient mounting method as components can be snapped or slid into place, and they are also space-saving.

Datasheet-1492-PG31P

Bulletin 1492-P Push-in Terminal Blocks
