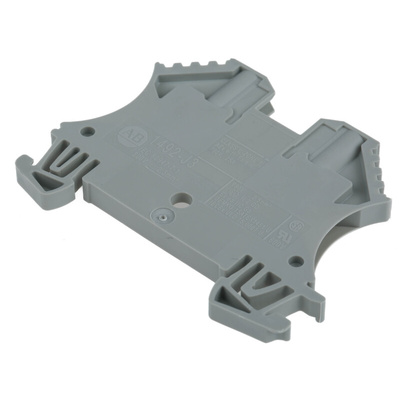

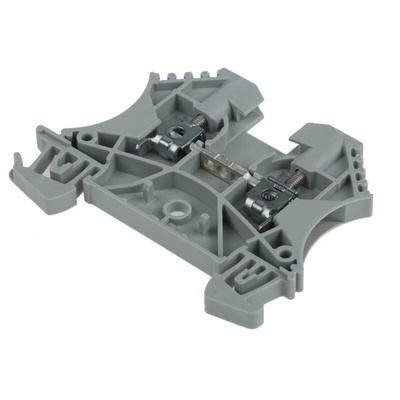

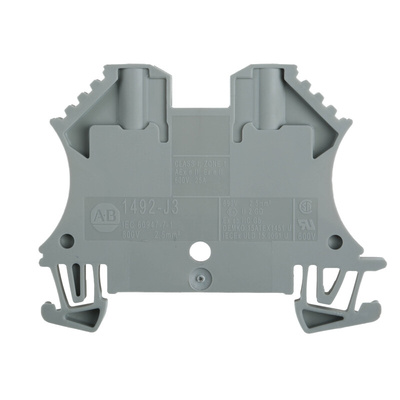

Rockwell Automation IEC 1492-J3 Screw-type Feed-Through Terminal Block
If you need a single-circuit feed-through terminal block which is durable, easy to use, and dependable, try the 1492-J3 module by Rockwell Automation.
The 1492-J3 unit is a one-circuit screw-type feed-through terminal block, in grey. This block can be installed via DIN rail, enabling efficient and easy organisation of your control cabinet. It features a wide housing temperature range of -50…+120°C (-58…+248°F). The wire strip length is 0.39 in. (10 mm).
Maximum Wire Size and Rating:
UL: 30-12 AWG (25A @600V AC/DC)
CSA: 26-12 AWG (20A @600V AC/DC)
IEC: 2.5mm² (24A @800V AC/DC)
EEx e II: 2.5mm²/20-14 AWG (21A @ 550V AC/DC)
The 1492 Terminal Block family by Rockwell Automation is designed to meet recognised international IEC, UL, CSA and ATEX standards so you can depend on safe, high-quality solutions which give you total peace-of-mind.
Features and Benefits:
• IP2X finger safe housing for protection against electric shock
• Quick and simple DIN rail mounting
• Counter sinking of clamping screws
• Copper current bar and tin-plated surface
• Secure self-locking design with steel clamps and screws
Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient distribution of power. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives.
What does a terminal block do?
Terminal blocks are modular components which secure two or more wires together inside an insulated frame. They keep wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. Troubleshooting and maintenance is made easy with these devices as the wiring can be easily connected or disconnected within the block. Different termination types are also available, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-efficient type of connector.
