Rockwell Automation 1492-J35 Series Feed Through Terminal Block, 2-Way, 150A, 12 - 1/0 AWG Wire, Screw Termination

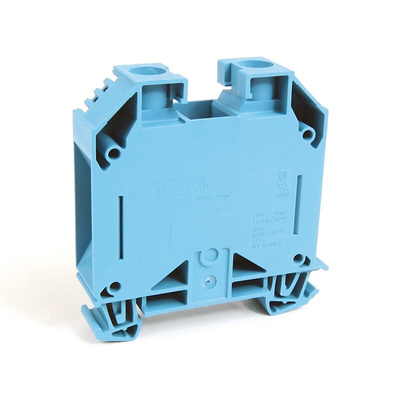

Rockwell Automation IEC 1492-J35 Screw Type Feed Through Terminal Block

Enhance your control cabinet with the IEC 1492-J35 Screw Type Feed Through Terminal Block by Rockwell Automation, which meets recognised international IEC standards. This module is a durable, high-quality solution for your wiring system that offers protection, easy installation, reliability, and ruggedness.

The IEC 1492-J35 module is a one circuit standard feed through terminal block, screw type, in grey. This feed through terminal block has IP2X finger safe housing to decrease the risk of electric shock and features a secure self-locking screw type clamp design with steel clamps and screws. It is DIN rail mountable to ensure that it is easy to install and allows simplified organisation of your wiring system. This block is specifically designed for single-circuit feed-through applications.

Maximum wire size and rating:

UL: 12-2 AWG (115A @600V AC/DC)
CSA: 12-2 AWG (115A @600V AC/DC)
IEC: 35mm² (125A @1000V AC/DC)
EEx e II: 35mm²/14-2 AWG (109A @ 750V AC/DC

Features and Benefits:

• Easy installation or removal from both sides of DIN Rail
• Counter-sinking of clamping screws
• Copper current bar and tin-plated surface
• Compatible with several high visibility snap-in marker cards
• Adheres to recognised international IEC, UL, CSA and ATEX standards

Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient distribution of power. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives.

What is a terminal block?

A terminal block is a modular component which secures two or more wires together inside an insulated frame. This keeps wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. They can be easily connected or disconnected within the block which provides easy troubleshooting and maintenance. They can feature different termination types, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-effective type of connector.
