LE1D09N7, Schneider Electric DOL Starter, DOL, 5.5 kW, 415 V ac, 3 Phase, IP65

Schneider Electric DOL Starter, 9A Current Rating, PC Housing - TeSys Series - LE1D09N7

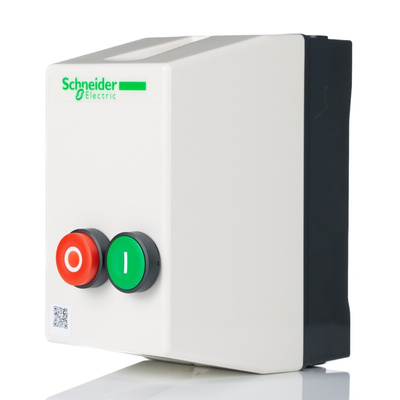

Drive your machines to full speed with this DOL starter from Schneider Electric's TeSys range. It connects electrical motors directly to the power source, supplying full starting torque to your load. Thanks to its robust PC housing, the unit can handle wear and impact, so it won't cave under pressure. Responsive switching is at the tips of your fingers, thanks to colour-coded push buttons. As the starter has a power rating of 5.5kW, it's the ideal partner for heavy-duty industrial motors.

• Light weight of 920g for minimal strain on your equipment
• IP65 rating means it's dustproof and can withstand low-pressure water jets
• Broad operating temperature range between -5°C and +40°C for use in demanding settings
• Voltage rating of 415V AC for use in low-voltage applications
• Compact dimensions of 166 (H) x 88 (W) x 128.5mm (D) to save space in your setup

Applications

• Process and packaging plants
• Wind turbines
• Water pumps

The Schneider Electric TeSys enclosed starter with contactor, 3 poles, Ithe 35A 690V, for non-reversing motor applications 15kW@400V AC-3. Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a green pushbutton Start (I) and a red pushbutton Stop/Reset (O).

How do I ensure safe operation of this DOL starter?

It includes a contactor LC1D with a control circuit 230V 50/60Hz

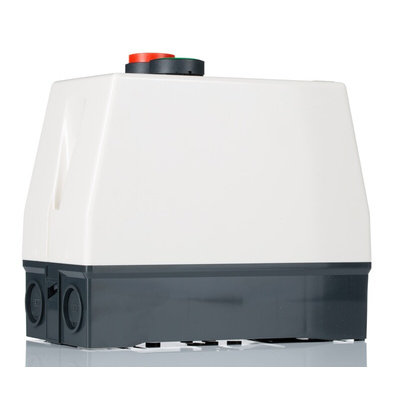

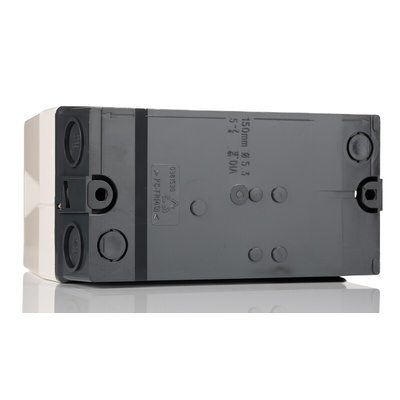

It provides Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom

For safety, use it with an overload relay to prevent short circuits and overcurrents.
