1492-P2, Rockwell Automation 1492-P Series Grey DIN Rail Terminal Block, 1.5mm², Push In Termination, ATEX

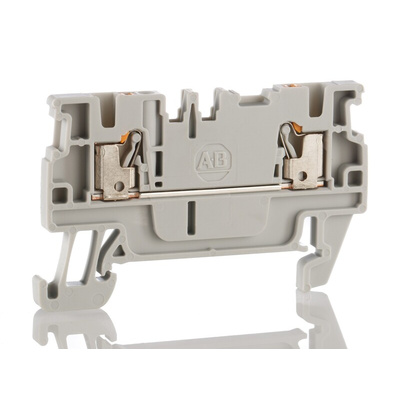

Rockwell Automation IEC 1492-P2 Single-Level Push-in Terminal Block

Wiring connectivity is made easy with the IEC 1492-P2 single-level terminal block by Rockwell Automation. This unit features push-in connectivity for convenient and secure wiring installation, saving you time. There is no need for retightening and it only needs a low insertion force.

The 1492-P2 module is a feed-through terminal block with a grey coloured body. This terminal block can be mounted on a DIN rail, enabling fast, simple set-up. It also uses plastic actuators for shock prevention, making it a safe choice for your control cabinet. The housing temperature for this block ranges from -60 to 130°C (-76…266°F).
Dimensions (W x H x L): 3.5 x 33.5 x 55 mm

Features and Benefits:

• 2 connection points
• Compact and easy to use with one-hand-one second insertion
• Terminals on the front are clearly visible
• Up to 65% faster set-up when used with an automated ferrule machine
• Wire strip length: 0.31 in. (8 mm)

What is a DIN rail?

A DIN rail is a component rail-mounting system for equipment cabinet racks. ’DIN’ refers to ’Deutsche Institut für Normung’, which is a global industry standard. They are made up of a long metal strip to which electrical and industrial control products can be attached, such as terminal blocks, circuit breakers, power supplies, and more. They are a convenient mounting method as components can be snapped or slid into place, and they are also space-saving.

Datasheet - 1492-P2

Bulletin 1492-P Push-in Terminal Blocks
