160226848, Norgren 16 Series Straight Fitting, G 3/4 Female to G 1/2 Female, Threaded Connection Style

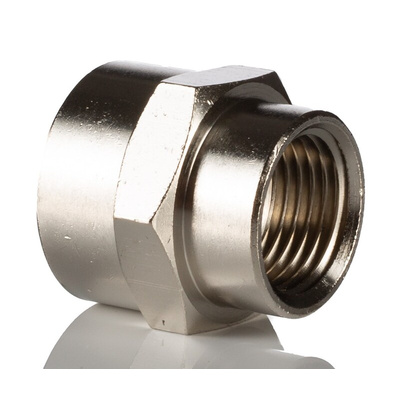

IMI Norgren Pneumatic Fitting, Sleeve Adaptor, 30mm Length - 16 Series - 160226848

Adapt your machinery's ports to fit your piping with this sleeve adaptor from IMI Norgren. It has a female G3/4 connector on one end and a female G1/2 connector on the other, allowing you to customise your setup without replacing any existing equipment. The adaptor's tapered threaded ports make it easy to attach without the need for specialised tools. They also ensure a tight seal to minimise the risk of leaks for improved system efficiency.

Features & Benefits

• Compact measurements of 30 (length) x 30mm (diameter) to fit into tight spaces
• Nickel-plated brass body is resistant to corrosion and wear for long-lasting performance in harsh environments
• Wide operating temperature range of -18°C to +70°C for use in demanding applications
• Light weight of 0.04kg to place minimal strain on your equipment

Applications

• Drilling equipment
• Bottling plants
• Positioning applications
• Renewable energy industry

What's the operating pressure range of this adaptor?

This adaptor has a broad operating pressure range between -0.9 and 18 bar, so it's suitable for use in both low-pressure and high-pressure applications.

Datasheet - 160226848
