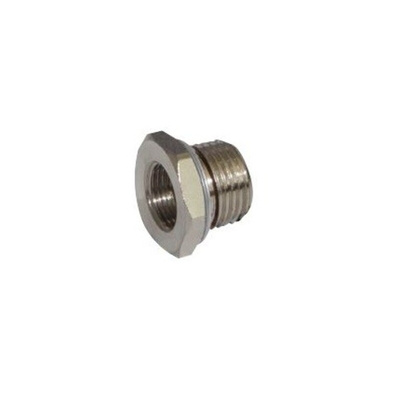

160233818, Norgren 16 Series, G 3/8 Male to G 1/8 Female, Threaded Connection Style

IMI Norgren Pneumatic Fitting, -0.9 to 18 Bar Operating Pressure Range, 14mm Length - 16 Series - 160233818

Need to adapt the ports on your pneumatic hardware to fit your tubing? Opt for this pneumatic fitting from IMI Norgren. It reduces the size of your machine's air input, eliminating the need to change your choice of tubing. As it combines male G3/8 and female G1/8 threaded connectors, the unit's widely compatible with most standard industrial equipment. There's an aluminium washer that forms an airtight seal to minimise the risk of pressure loss. By supporting operating pressures up to 18 bar, this versatile fitting is able to handle intense air-powered processes.

Features & Benefits

• Straight shape for easy handling and quick connections
• Resilient nickel-plated brass body resists corrosion for durability in damp conditions
• Compact length of 14mm for installation in smaller systems
• Broad operating temperature range between -18°C and +70°C means it's well-suited to harsh industrial environments

Applications

• Spray painting equipment
• Food processing facilities
• Construction industry

What media can I use this pneumatic fitting with?

This fitting is specially designed for use with clean compressed air.

How is this unit supplied?

It comes in a bag of five units, so you'll have enough on hand for multiple jobs.

Datasheet - 160233818
