8240100.9100.00000, Norgren NC Solenoid Pilot Valve - Solenoid G 3/8 82400 Series

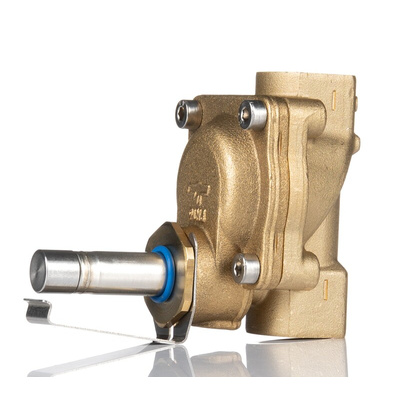

IMI Norgren Solenoid Pilot Valve, G3/8 Port, Seat Type - 82400 Series - 8240100.9100.00000

Got neutral gases or liquids flowing through a pipe? Get them headed in the right direction with this solenoid pilot valve from IMI Norgren. It's a 2/2-way seat valve, meaning it has two ports (inlet and outlet) and two switching planes (open and closed). The valve is normally closed and has a spring return action, so you can rest assured it will always shut tight even if the power fails. Thanks to a maximum operating pressure of 16 bar and its ability to handle high flow rates of up to 3m³/h, this is a versatile choice for your industrial setup.

Features & Benefits

• Stainless steel components are corrosion-resistant for a long service life
• Compact size of 78.5 (L) x 60 (H) x 44mm (W) makes it suitable for use in small spaces
• Click-on fitting system means you can change the solenoid easily without specialised tools

Applications

• Factory automation
• Process control
• Automotive industry

What temperature range can this pilot valve operate in?

It's suitable for fluids between -10°C and +90°C and an ambient operating temperature of between -10°C and +50°C, so it can withstand tough conditions.

Can I use it for contaminated fluids?

You can, but you should insert a strainer to filter out particles.
