B07-201-A1KG, Norgren B07 Air Filter Regulator, 5μm, G 1/4, Automatic

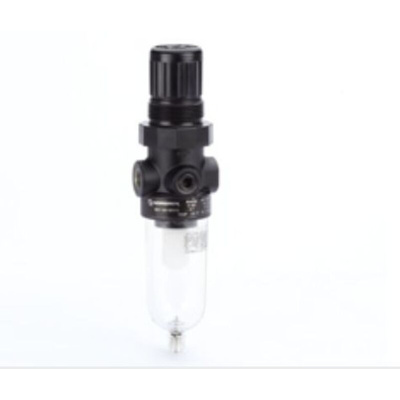

IMI Norgren Miniature Air Filter Regulator, Automatic Drain, G1/4 - B07-201-A1KG

Ensure that downstream air flow is clean and manage pressure levels easily with the B07-201-A1KG filter regulator from IMI Norgren.

This device combines a filter which traps unwanted particles alongside a regulator which keeps pressure stable in your pneumatic system. Removing harmful contaminants protects the service life of pneumatic equipment, keeping your compressed air preparation system operating efficiently for longer. This Norgren B07 unit features a high-performance design which offers high flow and minimised pressure drop. It has a pressure range of 0.3 bar to 7 bar and 5μm filtration. It can be used within a large operating temperature range of -34°C to +50°C and also has relieving functionality.

Features and Benefits:

• Compact space-saving unit
• Transparent plastic bowl enables easy visual inspections for cleaning
• Durable corrosion resistant body made of zinc alloy
• Non-rising adjusting knob with snap-action lock prevents accidental changes to the settings

What is a relieving regulator?

A relieving regulator will allow excess pressure to escape if it builds beyond a set point. It does this by opening a vent, which enables the pressure to safely bleed out until the level normalises. A non-relieving regulator restricts high-pressure air flow and does not release it, and therefore will require another mechanism in the system to provide relief. Non-relieving regulators are better suited for hazardous gases which need to be contained and controlled.

Datasheet - B07-201-A1KG
