BL84-601G, Norgren G 3/4 Filter Regulator Lubricator, Automatic Drain, 40μm Filtration Size - Yes

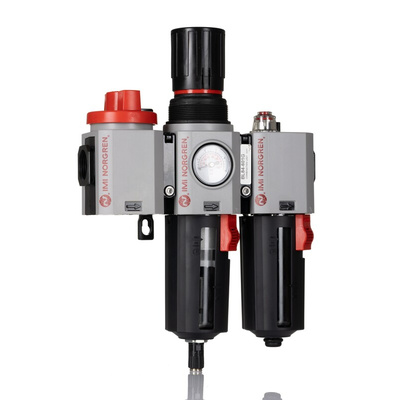

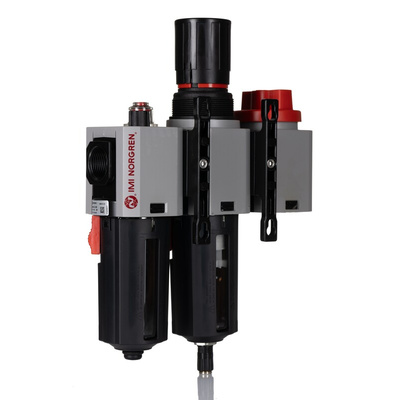

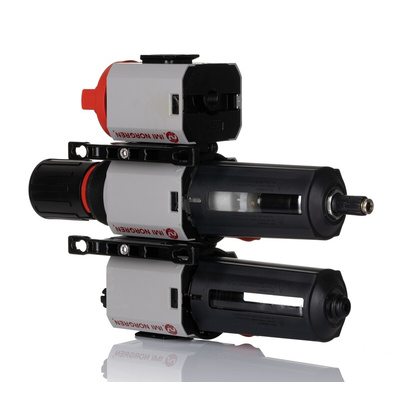

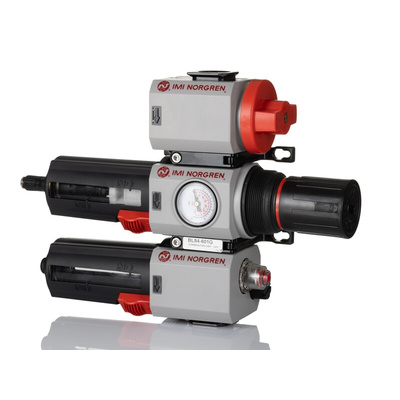

IMI Norgren Filter Regulator Lubricator, 0.3 to 10 Bar Output Pressure Range, 1.65kg Weight - Excelon Plus Series - BL84-601G

Is clean and unobstructed flow of compressed air your target? Get this IMI Norgren filter regulator lubricator on the job. It takes out impurities, controls the air input and dispenses oil to moving parts of your equipment to improve their performance and lifespan. The unit's micro-fog lubrication system works effectively in complex networks, as it disperses grease far and wide. Die-cast aluminium housing is on hand to protect against impact and corrosion, making this a smart choice for harsh industrial environments.

Features & Benefits

• Filtration size of 40μm to remove tiny dust particles and contaminants that might cause blockages
• Auto-drain mechanism eliminates the need to manually empty the bowl
• Output pressure range between 0.3 and 10 bar for versatile use in light-duty and heavy-duty applications
• Light weight of 1.65kg means it won't put a strain on your equipment

Applications

• Medical equipment
• Sewage treatment plants
• Robotics and automation systems

How do I monitor the pressure level in this component?

This unit comes with an integrated analogue gauge that helps you keep an eye on pressure levels.
