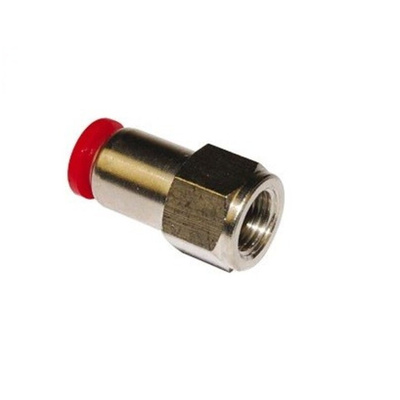

C02261018, Norgren Pneufit C Series Straight Threaded Adaptor, G 1/8 Female to Push In 10 mm, Threaded-to-Tube Connection Style,

IMI Norgren Pneumatic Fitting, Female Adaptor Type, -0.9 to 10 Bar Operating Pressure - PNEUFIT C Series - C02261018

For fast assembly of your pressurised system, grab this pneumatic fitting from IMI Norgren. It's a threaded-to-tube female adapter that comes ready to use. You can link tubes and components together in a snap, thanks to the 10mm push-in connection and standard G1/8 thread. The nickel-plated brass housing resists wear and corrosion to deliver an extended product life, even in challenging industrial conditions. As there's no need to use tools during set-up, you'll speed through installation.

Features & Benefits

• Light weight of 40g means it won't put excess strain on your pneumatic equipment
• Quick-release stainless steel grab ring lets you conveniently detach tubes in an instant
• Broad operating pressure range between -0.9 and 10 bar means it stands up to heavy-duty machinery
• Silicone-free seal is U-shaped for an optimal, airtight lock under low or high pressure

Applications

• Packaging equipment
• Warehouse production lines
• Printing industry

What tubes can I use with this pneumatic fitting?

The unit is compatible with both polyurethane and nylon tubes with 85 or 95 durometer hardness, making it a versatile option.

Datasheet - C02261018
