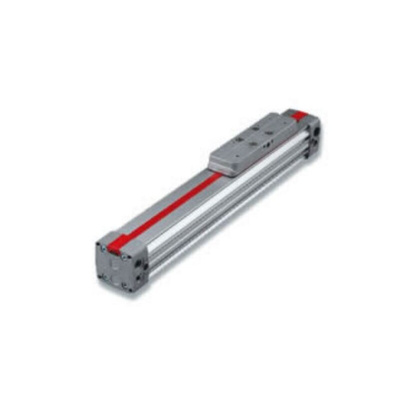

M/146032/M/1400, Norgren Double Acting Rodless Actuator 1400mm Stroke, 32mm Bore

IMI Norgren Rodless Actuator, Adjustable Cushioning, 1 to 8 Bar Operating Pressure Range - Lintra Plus Series - M/146032/M/1400

Keep objects flowing smoothly through your automated system with this rodless actuator from IMI Norgren. As it delivers forces up to 482N at 6 bar pressure, it gets heavy products moving through sorting processes without a hitch. The unit's rodless design means the housing contains the whole actuator assembly, which saves space in tight setups. Fitting sensors is easy, thanks to its universal mounting grooves. This product's adjustable cushioning dampens impact from the rod, so you can rest assured it delivers safe handling.

Features & Benefits

• Double-acting model uses air to extend and retract, giving you precise stroke control
• Corrosion-resistant aluminium body stands up to the rigours of damp settings
• Stroke length of 1400mm is ideal for tasks needing long reach
• Standard G1/4-thread pneumatic port for wide compatibility with air supplies
• Performs reliably in temperatures between -30°C and +80°C

Applications

• Cranes and pulleys
• Automotive manufacturing
• Printing industry
• Packaging plants

How do I adjust the cushioning on this actuator?

You can do this by turning the cushioning screws on the sides of the end plates, so it's easy to make adjustments to suit your application.
