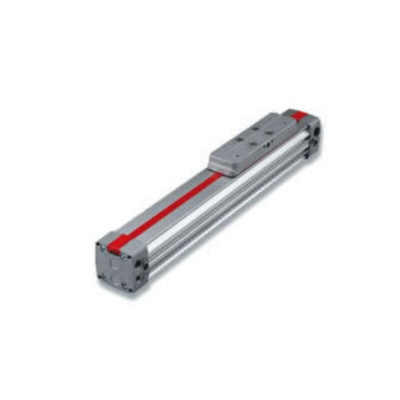

M/146032/M/2000, Norgren Double Acting Rodless Actuator 2000mm Stroke, 32mm Bore

IMI Norgren Rodless Actuator, 8 Bar Maximum Operating Pressure, G1/4 Port Size - Lintra Series - M/146032/M/2000

Need a product to shift workpieces along your production or assembly line? IMI Norgren's rodless actuator is up to the job. As it takes in air from both ends, this double-acting device provides precise control and reliably repeatable linear movements. It's rodless, meaning it saves space and gives the load support through the entire stroke. A stainless steel shim ring powers on through challenging tasks without getting dented or scratched. This actuator is made to be interchangeable with other devices from the M/46000 series, so it's a versatile choice.

Features & Benefits

• 2000mm stroke and 32mm bore offer powerful output for demanding applications
• Generates up to 482N of force to move heavy loads
• Nitrile rubber seals resist corrosion to maintain system pressure
• Inbuilt dust protection prevents industrial contamination from getting into the workings

Applications

• Processing and packaging lines
• Hoisting equipment
• Factory automation

Is this component reliable in harsh conditions?

Yes. This rodless actuator performs without breaking a sweat in a temperature range between -30°C and +80°C, so it's an ideal option for use in harsh factory conditions.
