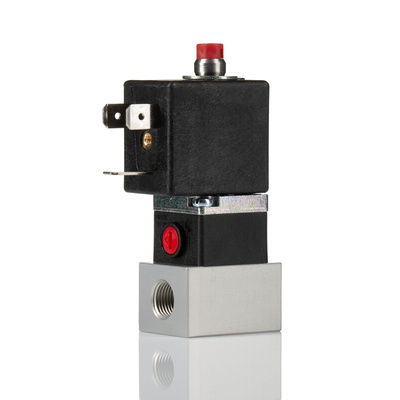

M/49/MDZ83J, Norgren Solenoid Valve - Solenoid/Spring G 1/8 M/49 Series

IMI Norgren Solenoid Valve, 0 to 10 Bar Operating Pressure, 22mm Poppet Valve - M/49 Series - M/49/MDZ83J

Manage the flow of compressed air in your pneumatic system with this solenoid valve from IMI Norgren. It uses a small electrical signal to actuate the mechanism that opens and closes the valve. You can manually override it using a screwdriver, giving you a high degree of control. This unit has a G1/8 thread size for broad compatibility with standard pneumatic equipment. As its tube and spring are made of stainless steel, it's resistant to corrosion and wear for durability in harsh environments.

Features & Benefits

• IP65 rating means it's dust-tight and protected against low-pressure water jets
• Wide operating pressure range between 0 and 10 bar for versatility
• Coil made of glass-reinforced plastic for resistance to heat and corrosion
• Light weight of 0.12kg to place minimal strain on your equipment
• Coil can be mounted in four positions for versatility

Applications

• Power motors
• Control systems

What flow rate does this solenoid valve support?

This solenoid valve has a flow rate of 77L/min, making it suitable for medium-volume applications.

Datasheet - M/49/MDZ83J
