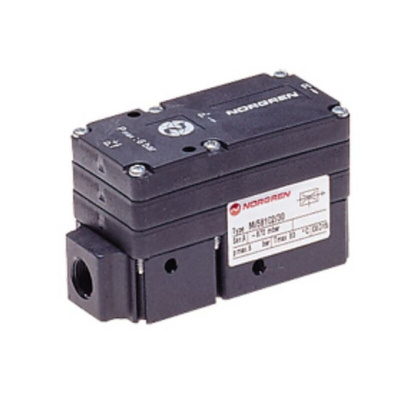

M/58102/30, Norgren Vacuum Pump, 6bar 144L/min, M/58102 series

IMI Norgren Vacuum Pump, 6 Bar Maximum Input Pressure, Compressed Air Medium - M/58102 series - M/58102/30

Need to create a partial vacuum or move compressed air through your pneumatic system? Trust this vacuum pump from IMI Norgren to get conditions just right. It's a multi-stage vacuum pump, meaning it delivers greater pumping capacity and efficiency than its single-stage counterparts. Thanks to a maximum suction flow of 144L/min, this is a suitable choice for low-volume applications. To boost workplace comfort, a ported silencer ensures sound levels are kept to a level between 75 and 80dB.

Features & Benefits

• Maximum input pressure of 6 bar for mid-pressure applications
• Standard G3/8 port size for easy installation
• Induced air vacuum of 240nl/min, so it's suitable for demanding applications
• Made of durable, corrosion-resistant polyurethane
• Operates reliably in a temperature range between -20°C and +80°C

Applications

• Mechanical engineering workshops
• Packaging plants
• Industrial automation equipment

What's the maximum vacuum pressure of this vacuum pump?

The pump has a maximum vacuum pressure of -0.87 bar, so it's widely compatible with industrial vacuum requirements.

How big is this vacuum pump?

Compact dimensions of 39.5 (H) x 66 (L) x 30mm (W) mean the unit doesn't take up much space in a busy setup.
