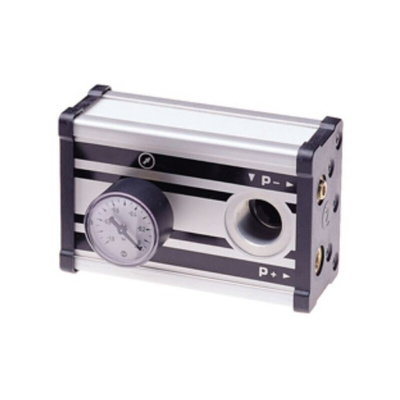

M/58102/60, Norgren Vacuum Pump, 6bar 285L/min, M/58102 series

IMI Norgren Vacuum Pump, Integral Silencer, 6 Bar Operating Pressure - M/58102 series - M/58102/60

Looking for a compact way to create substantial suction? Choose this vacuum pump from IMI Norgren. It's a multi-stage pump with nozzles that draw in air to create low-pressure zones. This allows it to generate a maximum suction flow of 285L/min, much greater than a single-stage vacuum generator. With dimensions of just 90 (H) x 164 (L) x 82mm (W), this pump is ideal for applications where space is tight and you need more oomph from a small package.

Features & Benefits

• Induced air vacuum of 480nl/min is suitable for high-volume applications
• Standard G3/4 port size for wide compatibility
• Maximum operating pressure of 6 bar means it's suitable for use at medium pressure levels
• Tolerates harsh conditions thanks to an operating temperature range between -20°C and +60°C
• Integral silencer for low sound levels between 75 and 80dB

Applications

• Laboratories
• Packaging plants
• Manufacturing systems

What material is this vacuum pump made of?

It has durable aluminium housing that's resistant to corrosion in harsh settings. The pump also features tough ABS end caps and sturdy steel mountings, so you can rely on it to last.

Datasheet - M/58102/60

Catalogue - World Class Motion and Fluid Control Solutions
