Norgren Pneumatic Proximity Switch Pneumatic Cylinder & Actuator Switch, QM/140, with LED indicator

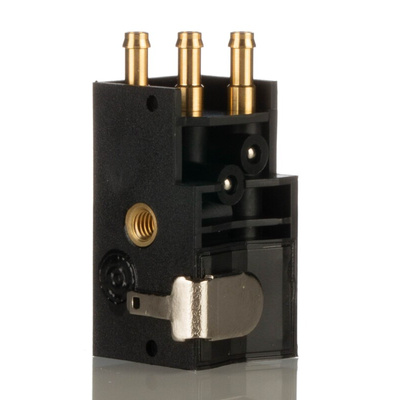

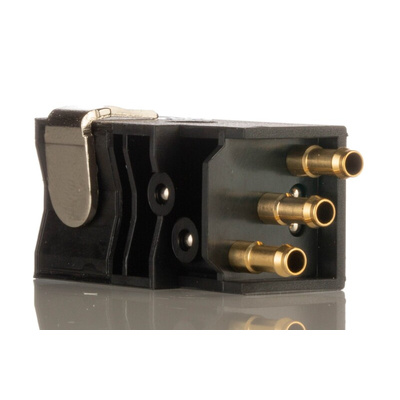

IMI Norgren Compact Pneumatic Sensor Switch, 3mm Port Size, 40.5mm Length - QM/140

Use this sensor from IMI Norgren to automatically activate or deactivate your pneumatic system. It works by detecting the presence of an object such as a piston via a magnetic field, notifying the actuator to switch on or off. The sensor is made from durable plastic, so you can depend on it for long-term use, even in harsh conditions. Non-ferromagnetic brass pipe connectors limit interference with the magnetic sensors. This is a practical choice for keeping your machinery running smoothly and promoting safety in the workplace.

Features & Benefits

• Suitable for use with connection tubes up to 3mm to suit your system's needs
• LED indicator lets you easily monitor system status
• Wide operating temperature between -15°C and +60°C for use in harsh environments
• Shock resistance of 500m/s² (metres per second squared) prevents injury to staff and damage to equipment

Applications

• Assembly lines
• Factories and workshops
• Industrial machinery
• Medical equipment

What actuators are compatible with this sensor switch?

This sensor is compatible with all of IMI Norgren’s Roundline magnetic actuators, including RT/57200/M, RM/57200/M, RM/8000/M ISO and RA/8020000/M.

Datasheet - QM/140
