QM/92080/00, Norgren Service Kit for QM

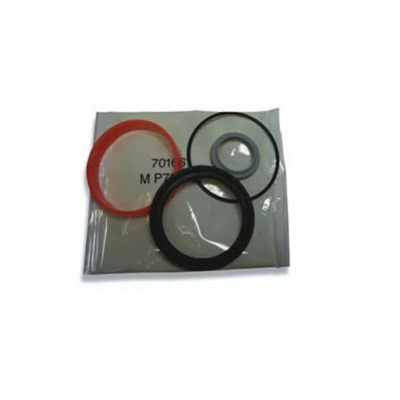

IMI Norgren Service Kit, Wear Ring Type, 4 Pieces - QM Series - QM/92080/00

To keep your pneumatic cylinder ticking over smoothly, use this service kit from IMI Norgren. It consists of wear rings that are designed to serve as a barrier between the piston and the wall of the barrel, preventing direct metal-to-metal contact. This helps to reduce friction, extending the cylinder's service life. As these components also contribute to the sealing function, they keep the piston properly aligned to the bore, stopping air from leaking out and dirt particles from getting in.

Features & Benefits

• Operating pressure range of 1 to 10 bar for reliability in low-pressure applications
• Includes 4 pieces so you have everything you need for maintenance tasks
• Elastic material ensures a reliably snug fit and is easy to handle during installation

Applications

• Industrial pumps
• Automotive industry
• Packaging facilities
• Agricultural equipment

What cylinder sizes can I use this kit with?

Thanks to the 80mm mounting diameter, you'll find it handy for medium-sized cylinders from the RM/92000 series (such as 220-4060).

What ambient operating temperature range can this kit handle?

This set has a wide operating temperature range of -5°C to +80°C, so you can trust if for safe use in challenging industrial settings.

Datasheet - QM/92080/00

Catalogue - World-Class Motion and Fluid Control Solutions
