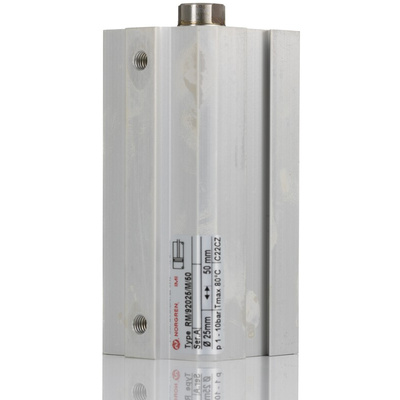

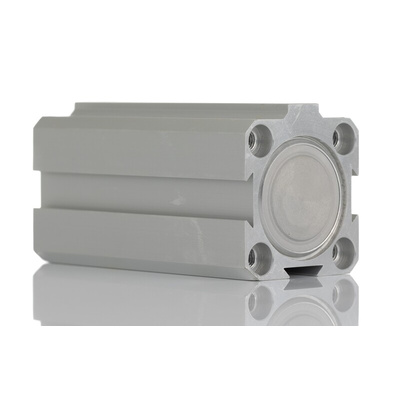

RM/92025/M/50, Norgren Pneumatic Cylinder - 25mm Bore, 50mm Stroke, RM/92025/M Series, Double Acting

IMI Norgren Pneumatic Cylinder, Polyurethane Seal, 0.85kg Net Weight - RM/92000/M Series - RM/92025/M/50

For reliable movement in your compressed-air system, hook up this IMI Norgren pneumatic cylinder. Supplying it with pressurised gas forces the unit's built-in rod to move out of the housing by a distance of 50mm, delivering a neat source of linear motion. The piston also moves in the other direction, so it's highly versatile. The cylinder has impact-resistant polyurethane seals that hold up against accidental dings and bashes to keep your setup free of leaks.

Features & Benefits

• Standard M5 thread is widely compatible with pneumatic connectors
• Stainless-steel piston rod is corrosion-resistant, so this product can operate in humid environments
• Maximum operating pressure of 10 bar, so it's suitable for heavy-duty applications
• Compact size of 85 (L) x 37 (W) x 40.5mm (H) lets you slot it neatly into tight or awkward work areas

Applications

• Automotive industry
• Manufacturing sector
• Main engine control systems

Is this product suitable for use in challenging work areas?

Yes. This pneumatic cylinder withstands temperatures in a wide range between -5°C and +80°C, so it's an ideal choice for challenging work areas.

Datasheet - RM/92025/M/50
