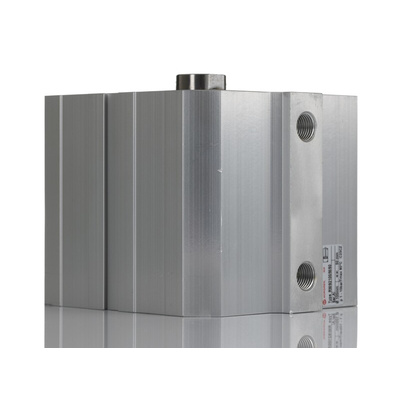

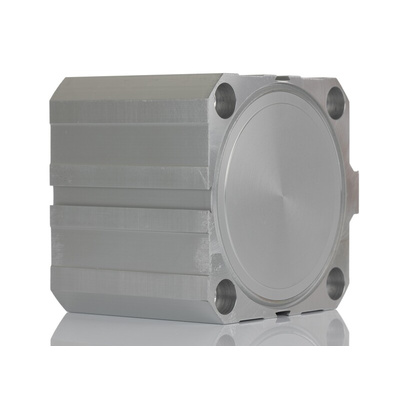

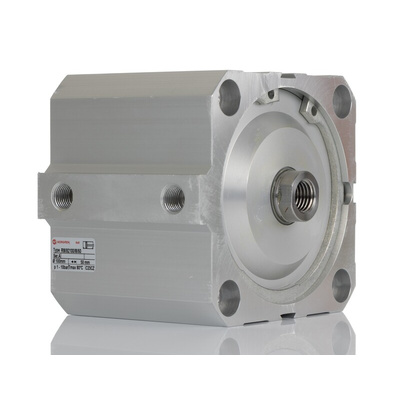

RM/92100/M/50, Norgren Pneumatic Cylinder - 100mm Bore, 50mm Stroke, RM/92100/M Series, Double Acting

IMI Norgren Pneumatic Cylinder, G1/4 Port, 6.03kg Weight - RM/92000/M Series - RM/92100/M/50

Choose this IMI Norgren pneumatic cylinder to get compressed air moving in the right direction through your network. A pressurised supply is all you need to move the built-in rod out of the housing by 50mm, providing your system with a source of controlled linear motion. The unit is double-acting, meaning the piston moves in both directions, so you get wide functionality. The polyurethane seals are impact-resistant for protection against accidental dings and dents. Thanks to its maximum operating pressure of 10 bar, this cylinder is an ideal choice for medium-duty applications.

Features & Benefits

• Safe to use in challenging conditions where temperatures reach -5°C to +80°C
• Stainless-steel piston rod is resistant to corrosion, so it functions well in humid work areas
• G1/4 port size means it's easily compatible with standard pneumatic connectors

Applications

• Main engine controls
• Manufacturing industry
• Automotive sector

What are the dimensions of this pneumatic cylinder?

This compact unit measures 108.5 (L) x 116.5 (W) x 125.25mm (H), so you can mount it in small or awkward work areas.

Datasheet - RM/92100/M/50
