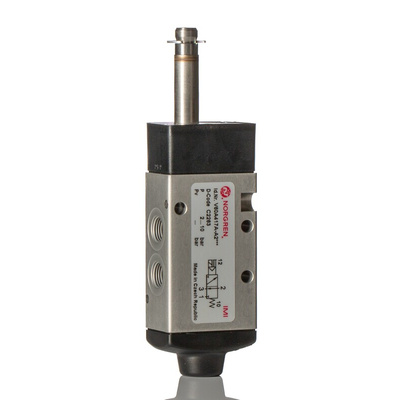

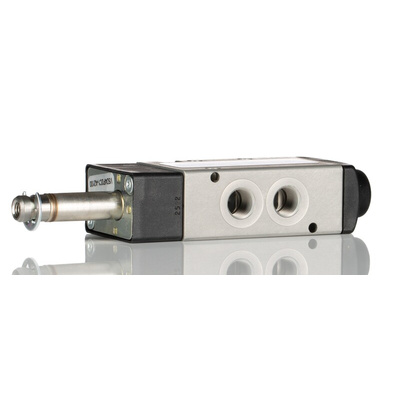

V60A417A-A2000, Norgren Pneumatic Solenoid Valve - Solenoid/Spring V60 Series

IMI Norgren Pneumatic Solenoid Valve, 3/2 Function, 2 to 10 Bar Operating Pressure Range - V60 Series - V60A417A-A2000

When you need to distribute, stop or direct airflow in a pipe, try this pneumatic solenoid valve by IMI Norgren. The valve opens and closes automatically when an electrical current triggers the internal poppet mechanism, which removes the need for manual operation. You'll find a valve like this in power and control applications, factory automation and hydraulic systems. It has a high flow rate of 500 to 4,500l/min for reliable performance. Thanks to its inline mounting feature, you can easily install it without taking up too much space in your existing setup.

Features & Benefits

• Aluminium housing material for resistance to corrosion in damp conditions
• Multiple manual override options to give you control in the event of an emergency

Applications

• Process control
• Automotive workshops
• Energy industry

Does this valve have an IP rating?

This pneumatic solenoid valve has an IP65 rating, meaning it's dust-tight and protected against low-pressure jets of water.

What's the operating temperature range of this valve?

This pneumatic solenoid valve operates between temperatures of -10°C to +50°C for safe use in industrial environments.

Datasheet - V60A417A-A2000
