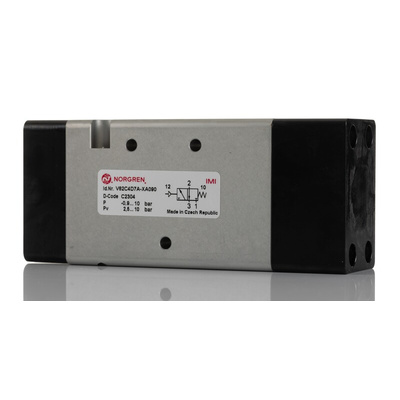

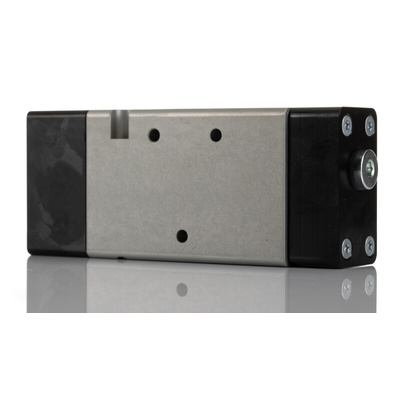

V62C4D7A-XA090, Norgren 3/2 Solenoid Pilot Valve - Pilot/Spring G 3/8 V62 Series

IMI Norgren Solenoid Pilot Valve, 3/2 Operation, 2600L/min Flow Rate - V62 Series - V62C4D7A-XA090

It's a breeze to direct air through your pneumatic system with this solenoid pilot valve from IMI Norgren. The spring-actuated valve uses differential pressure to open and close. Thanks to its broad operating pressure range between -0.9 and 10 bar, it's suitable for use in a wide variety of applications. NBR seals are resistant to corrosion and wear, helping to prevent leaks and maintain optimal performance. A high flow rate of 2600l/min means this valve can go with the flow in high-volume systems.

Features & Benefits

• Wide operating temperature range between -10°C and +50°C for use in harsh environments
• Aluminium baseplate for resistance to corrosion and impact
• G3/8 thread size for ease of connection to standard parts
• Light weight of 430g to place minimal strain on your equipment
• Compatible with filtered, lubricated or non-lubricated compressed air for versatility

Applications

• Automated machinery
• Construction plants
• Manufacturing equipment

How can I prevent ice from forming in my system?

To prevent ice formation, you'll need to use dry air when using this valve at temperatures below +2°C.

Datasheet - V62C4D7A-XA090
