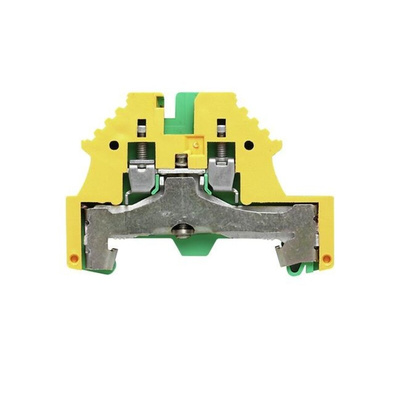

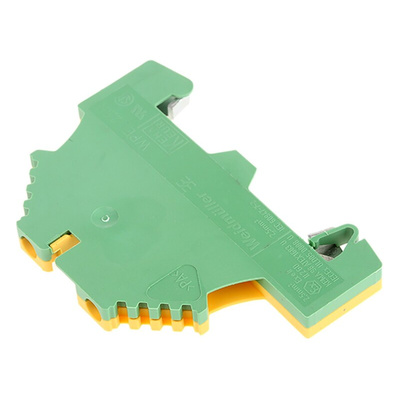

1016200000, Weidmuller WPE Series Green/Yellow PE Terminal, 0.5 → 4mm², Single-Level, Screw Termination

Weidmuller PE Terminal, 0.4Nm Tightening Torque, 6kV Rated Impulse Withstand Voltage - W Series - 101620

Keep your industrial equipment on top of earth faults with this PE terminal from Weidmuller. Its clamping foot transforms your DIN rail into a busbar, safeguarding your setup from damage due to excess current feedback. This reduces the risk of fire outbreaks and electric shocks for improved safety. The terminal's Wemid housing offers resistance to impact and heat for use in harsh environments. Thanks to its open side panel, it's a cinch to integrate with other components on your circuit.

Features & Benefits

• Impulse withstand voltage rating of 6kV to handle powerful spikes
• Accommodates wire sizes ranging from 26 to 12AWG for flexibility
• Screw termination method ensures secure wiring without the need for complex tools
• Green and yellow colour makes it easy to identify as a ground unit

Applications

• Material handling equipment
• Water treatment plants
• Oil and gas industry

What's the operating temperature range of this PE terminal?

This component has a broad operating temperature range between -60°C and +130°C, making it suitable for use in challenging conditions.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
