1725656, Phoenix Contact MPT 0.5/2-2.54 Series PCB Terminal, 2-Contact, 2.54mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact PCB Terminal Block, 320V, 6A - MPT 0.5/2-2.54 - 1725656

Use this printed circuit board (PCB) terminal block from Phoenix Contact to link your wires and circuit board swiftly and efficiently. The block has two contacts that allow for the connection of dual conductors to make efficient use of space. Its contacts are made from copper alloy for high electric conductivity, strength and corrosion resistance. It also has a light weight of 0.6g, so it's easy to handle and introduces very little strain to your setup.

This component is plated with tin material that makes it rust-resistant and protects it from the elements. It's insulated with polyamide (PA) for prime electrical resistance and user safety. With an environmentally friendly use duration of 50 years, you can rest assured that it's a sustainable component to use in heavy-duty applications.

• Screw termination method for straightforward installation
• Voltage rating of 320V for medium-voltage applications
• Broad temperature of -40°C to +105°C for safe use in harsh environments
• UL94V-0 (Underwriter's Laboratory) rating, meaning it's self-extinguishing in the event of fire
• Compact dimensions of 5.54 (W) x 6.2 (L) x 2.54mm (D) for installation in small spaces

Datasheet 1725656

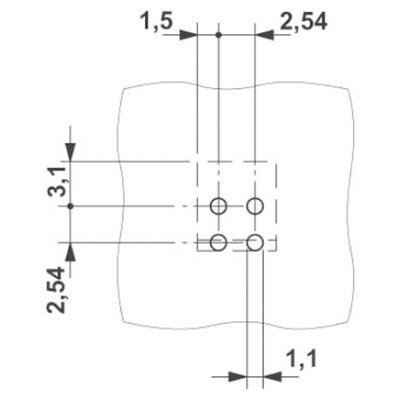

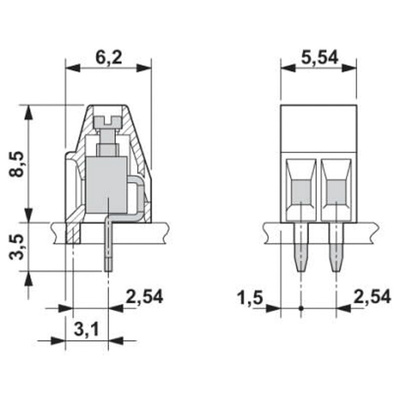

Technical Drawing 1725656
