1492-H4, Rockwell Automation 1492-H Series Black Fused DIN Rail Terminal, 4 → 0.05mm²

Rockwell Automation 1492-H4 Screw Type Single Circuit Terminal Block

Improve the safety of your control cabinet with the 1492-H Screw Type Single Circuit Terminal Block, with neon blown fuse indicator, by Rockwell Automation. This module meets NEMA standards and offers a simple way to add overcurrent protection into a circuit.

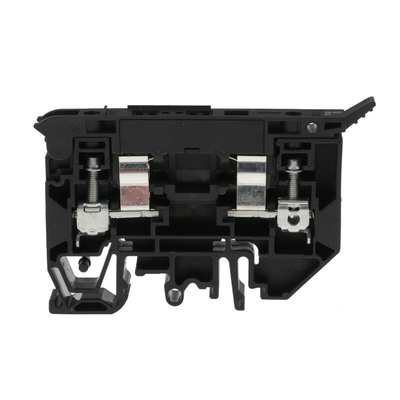

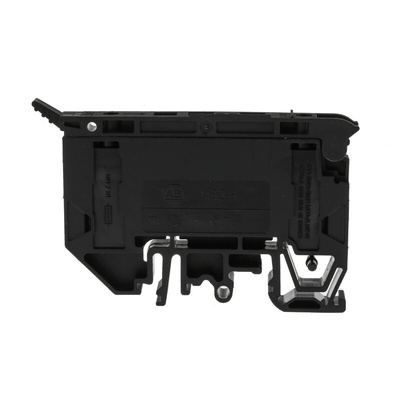

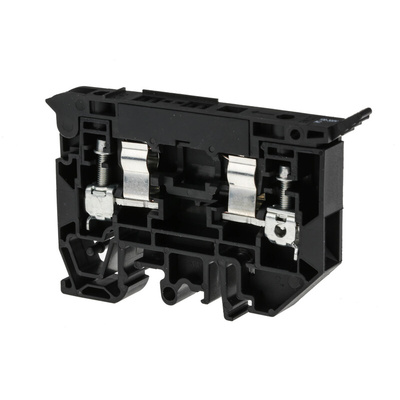

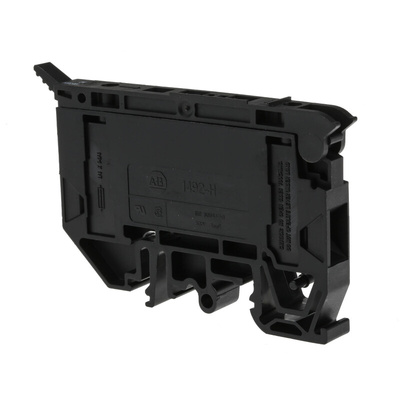

The 1492-H4 module is a finger safe, single circuit fuse block in black, featuring a neon blown fuse indicator. Voltage rating is 100 to 300V AC and the maximum current is 15A. It has screw type connection and an operating temperature of -40 to +90°C (40…+195 °F). It has finger-safe housing which helps to minimise the risk of electric shock.

Wire range:
#30 - #12 AWG

Wire strip length:
0.38 in. (9.7 mm)

Features and Benefits:

• Neon fuse indication light
• Convenient screw type connection

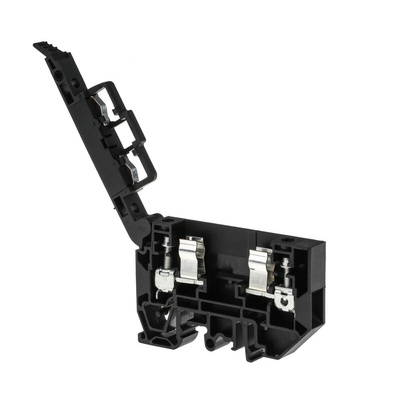

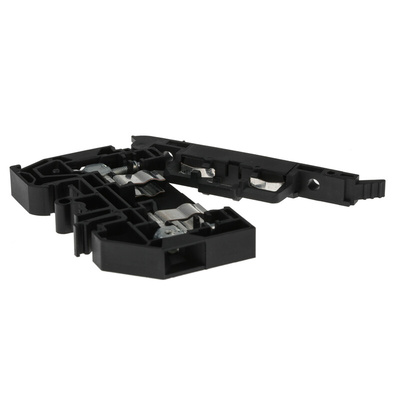

• Hinged-arm fuse block for better overcurrent protection
• DIN rail mount, 4 Sq mm
• Easy installation
• Nickel-plated terminals and stainless-steel screws

Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient distribution of power. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives.

What is a terminal block?

A terminal block is a modular component which secures two or more wires together inside an insulated frame. This keeps wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. They can be easily connected or disconnected within the block which provides easy troubleshooting and maintenance. They can feature different termination types, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-effective type of connector.
