1492-H6, Rockwell Automation 1492-H Series Black Fused DIN Rail Terminal, 4 → 0.05mm²

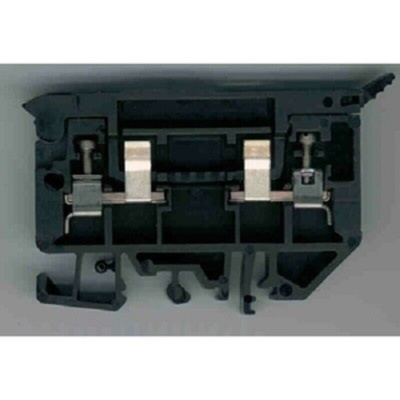

Rockwell Automation 1492-H6 Screw Type Single Circuit Terminal Block

For a terminal block that provides improved safety, reliability, and greater ease-of-installation for your electrical control cabinet, use the 1492-H Screw Type Single Circuit Terminal Block by Rockwell Automation. This module meets NEMA standards and offers a simple way to add overcurrent protection into a circuit.

The 1492-H6 terminal block is a high-density, finger safe fuse block in black, which can be DIN rail mounted. It has a maximum current of 15A and an operating temperature of -40 to +90°C (40…+195 °F). This module is non-indicating. To keep personnel protected it has finger-safe housing, which ensures that the risk of electric shock is minimised.

Wire range:
#30 - #12 AWG

Wire strip length:
0.38 in. (9.7 mm)

Features and Benefits:

• Hinged-arm fuse block for better overcurrent protection
• Convenient screw type connection
• IEC voltage rating of 500V ac/dc
• Easy installation
• Nickel-plated terminals and stainless-steel screws
• Ease-of-mounting with DIN rail mount, 4sq mm

Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient distribution of power. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives.

What is a terminal block?

A terminal block is a modular component which secures two or more wires together inside an insulated frame. This keeps wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. They can be easily connected or disconnected within the block which provides easy troubleshooting and maintenance. They can feature different termination types, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-effective type of connector.

Datasheet - 1492-H6

Specifications - 1492-H6

Rockwell Automation Terminal Blocks Brochure
