1492-H7, Rockwell Automation 1492-H Series Black DIN Rail Terminal Block, 4 → 0.05mm², Single-Level, Screw Termination

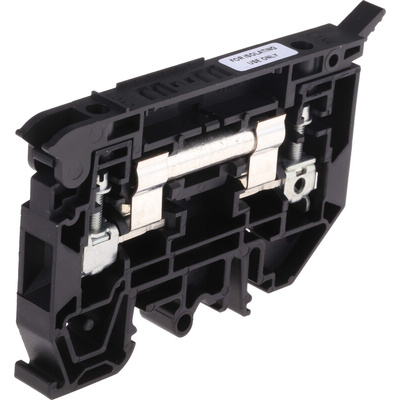

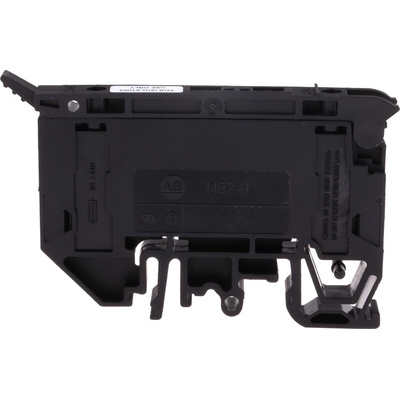

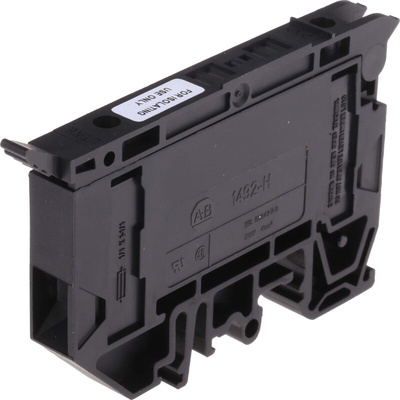

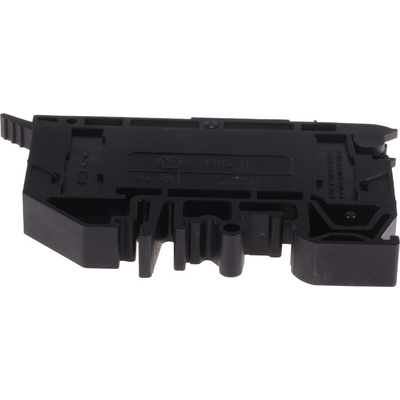

Rockwell Automation NEMA 1492-H7 Single Circuit Screw Type Isolating Terminal Block

Make your control cabinet safer and more efficient with the 1492-H7 Single Circuit Screw Type Isolation Terminal Block by Rockwell Automation.

The 1492-H7 module is a High-density Single Circuit Isolation Switch Block, in black. This handle-style screw-type block has IP2X finger-safe housing to minimise risk of electric shock, ensuring improved protection for your wiring system. The wire range is #30 - #12 AWG, 0.05...4mm². Maximum current is 15 A. This reliable terminal block has a housing temperature range of –40 to +105°C (–40 to +221°F ). The Rockwell Automation NEMA finger-safe terminal modules are compact and open style, with recessed terminals.

Features and Benefits:

• Backed-out screws
• Multi-rail mounting feet
• High-density and compact
• Recessed terminals
• Rail mounted
• UL component recognised, CSA certified, CE marked for use in the European Union

Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient power distribution. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives.

What is a terminal block?

A terminal block is a modular component which secures two or more cables together inside an insulated frame. This keeps wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. They can be easily connected or disconnected within the block which provides easy troubleshooting and maintenance. They can feature different termination types, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-effective type of connector.

Datasheet - 1492-H7

IEC 1492 Terminal Blocks Brochure

Specifications - 1492-H7
