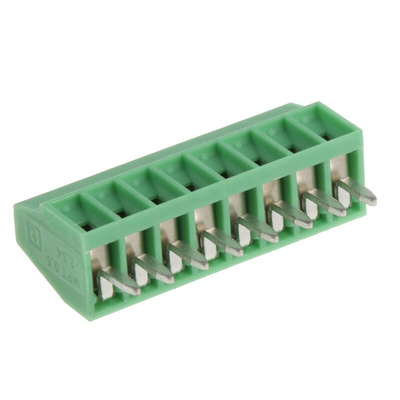

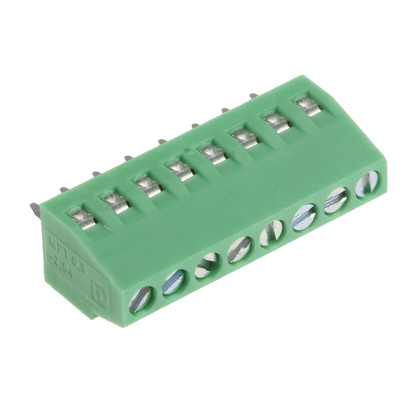

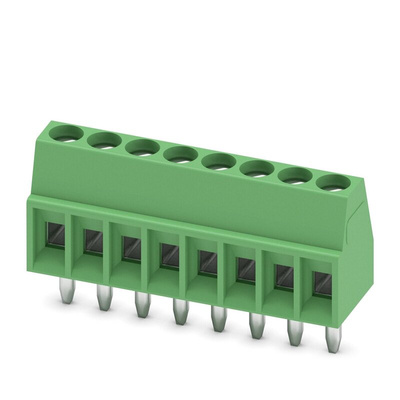

1725711, Phoenix Contact MPT 0.5/8-2.54 Series PCB Terminal Block, 8-Contact, 2.54mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact PCB Terminal Block, Female Gender, -40°C to +105°C Operating Temperature Range - MPT 0,5/ 8-2,54 - 1725711

Want to get signals moving reliably from A to B? Pick this PCB terminal block from Phoenix Contact to achieve reliable wire-to-board transmissions in your electrical system. Its single-row structure has eight contacts, letting you set up multiple connections. Thanks to its pitch size of 2.54mm, you'll find it's just the right fit for small conductors. A current rating of 6A means you can use it with low-power systems.
Thanks to its straight body orientation, it's easy to fit this block to a front-facing board in your panel. Simply solder it in place using the through holes to achieve a vibration-proof fix. The robust PA housing resists heat to maintain stability in demanding settings like automated manufacturing facilities.

Features & Benefits

• Conductor cross-section between 26 and 20AWG to fit large to medium-sized cables
• Flammability rating of UL 94-V0 indicates that burning will stop in ten seconds
• Lasting performance in tough settings thanks to a wide operating temperature range between -40°C and +105°C
• Screw termination ensures a secure hold on cables, so they won't wiggle loose

Datasheet 1725711

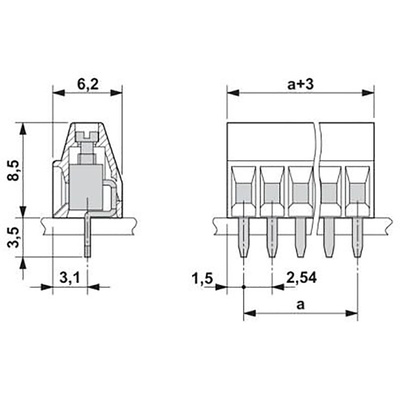

Line Drawing - 1725711
