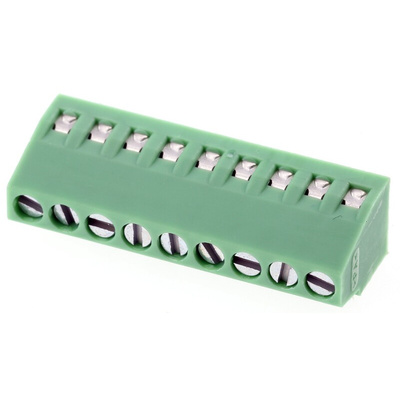

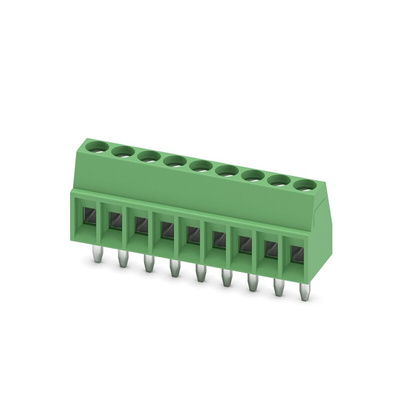

1725724, Phoenix Contact MPT 0.5/9-2.54 Series PCB Terminal Block, 9-Contact, 2.54mm Pitch, Through Hole Mount, 1-Row, Screw

Phoenix Contact PCB Terminal Strip, 9 Way, 320V Voltage Rating - MPT 0.5/ 9-2.54 - 1725724

Minimise the space needed to make multiple connections on a printed circuit board with this terminal strip from Phoenix Contact. The single-row block is compact, with a tapered end and pitch size of 2.54mm. It's capable of holding nine wires in a small block length of 23.32mm.
Screw terminals with tension sleeves ensure a secure wire hold and provide strain relief, so connections are reliable and durable. Through-hole mounting makes it easy to fix on PCBs and the unit is suitable for wave soldering to speed up the assembly of equipment.
As this strip's housing is made from polyamide, it's strong and resistant to wear and heat, so provides dependable insulation to the terminals. Along with the high contact force, this ensures a low temperature rise to protect circuits and allow a current rating of 6A. Use this terminal strip in racking systems and industrial automation.

• Universal connection to European and VDE standards for worldwide use
• UL94V-0 flammability rating to help keep installations fire safe
• Horizontal wire entry to make 90° connections

Datasheet 1725724

Line Drawing - 1725724
