1492-JD3C, Rockwell Automation 1492 Series Screw Terminal, 4-Way, 20A, 26 → 12 AWG Wire, Screw Cage Termination

Rockwell Automation IEC 1492-JD3C Double-Level Feed-Through Terminal Block

Ensure improved safety for your control cabinet and ease-of-installation with the double level feed-through terminal block with communing bar by Rockwell Automation. This terminal block family meets recognised international IEC standards to give you optimal reliability.

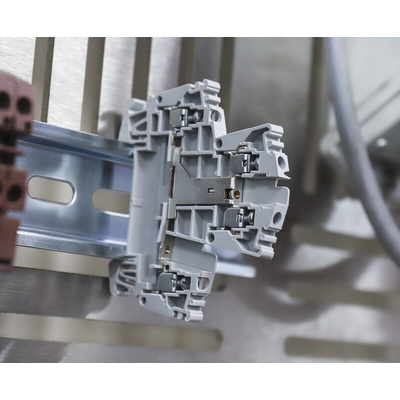

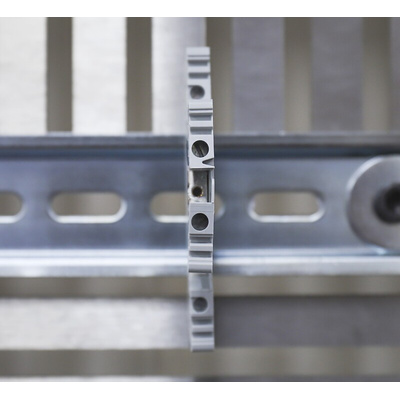

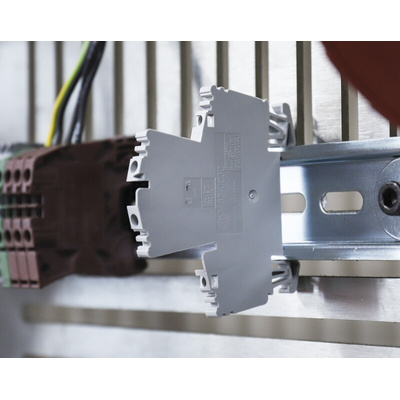

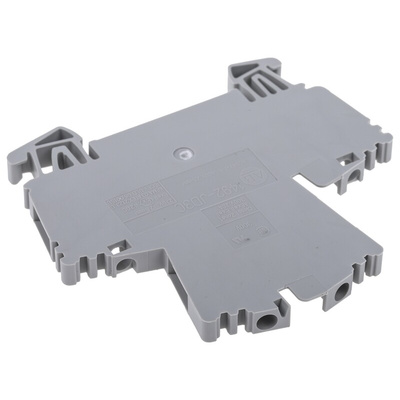

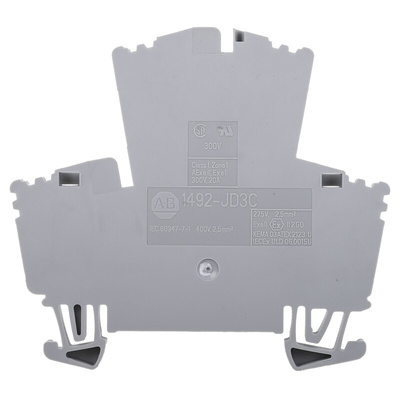

The 1492-JD3C is a Two-Level Feed Through Terminal Block with Commoning Bar in grey and features 4 connection points. This terminal block has a secure self-locking screw type clamp design with steel clamps and screws. It offers effortless installation as it can be DIN rail mounted and helps to provide easy, efficient organisation of your wiring system. Risk of electric shock is reduced due to its IP2X finger safe housing, ensuring greater protection.

Maximum wire size and rating:

UL: 22-12 AWG (20A @600V AC/DC)
CSA: 26-12 AWG (10A @300V AC/DC)
IEC: 2.5mm² (24A @400V AC/DC)
EEx e II: 2.5mm²/20-14 AWG (21A @ 275V AC/DC)

Features and Benefits:

• 4 connection points
• Improved panel space use
• Adheres to recognised international IEC, UL, CSA and ATEX standards
• Comes with all necessary accessories
• Comes with a complete catalogue with all the necessary information required
• Has all the necessary compliance required in the industrial applications of the product as per the manufacturers documentation

Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient distribution of power. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives.

What is a terminal block?

A terminal block is a modular component which secures two or more wires together inside an insulated frame. This keeps wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. They can be easily connected or disconnected within the block which provides easy troubleshooting and maintenance. They can feature different termination types, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-effective type of connector.
