1492-JD3RB512, Rockwell Automation 1492 Series Screw Terminal, 4-Way, 10A, 30 → 12 AWG Wire, Screw Cage Termination

Rockwell Automation IEC 1492-JD3RB512 Feed-Through Screw Type Terminal Block

For optimal durability, simplified installation, and superior protection the 1492-JD3RB512 Screw Type Feed-Through Terminal Block by Rockwell Automation is the perfect solution for your wiring system.

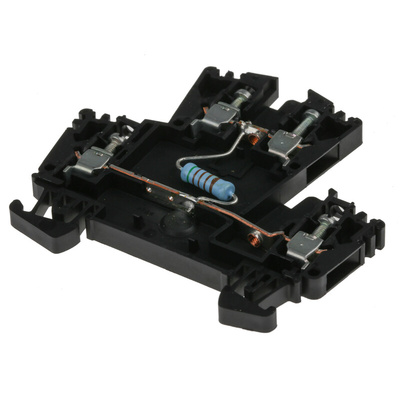

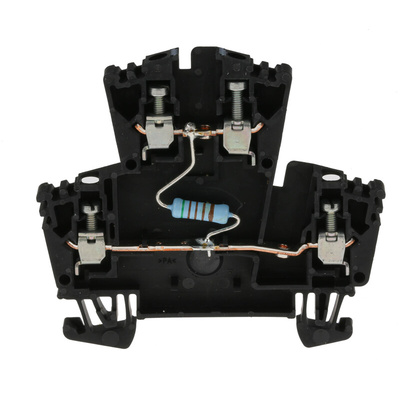

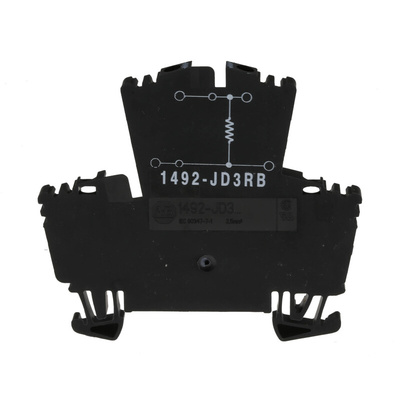

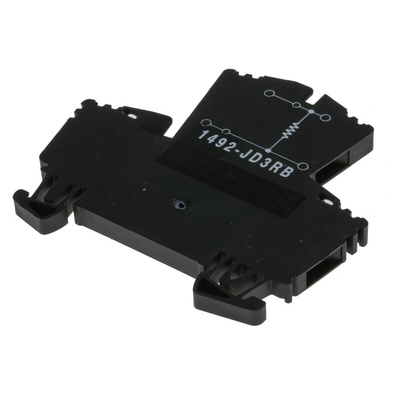

The IEC 1492-JD3RB512 unit is a Two-Circuit Feed-Through Terminal Block, in black. This Two-level module features a selectable resistor value between the 2 levels. It has 5100 Ohm Resistance. The resistor type is Metal Oxide Film. The housing temperature range for this terminal block is –50 to +120 °C (–58…+248°F).

The 1492-J family of terminal blocks adhere to recognised international IEC standards. They have IP2X finger-safe housing which helps to minimise risk of electric shock. They feature a secure self-locking screw type clamp design with steel clamps and screws. They can also be DIN rail mounted, ensuring easy installation.

Maximum wire size and rating:
UL: 22-12 AWG (20A Busbar @600V AC/DC)
CSA: 26-12 AWG (10A Busbar @300V AC/DC)
IEC: 2.5mm² @152V AC/DC

Features and Benefits:

• Offers secure contact which is durable even under extreme conditions
• Screwless termination technology which reduces wiring time by more than 50%
• Easy installation – Requires only a flat-head screwdriver
• Maintenance-free, no need to retighten
• Complete catalogue containing essential information included
• Has all the necessary compliance required in the industrial applications of the product as per the manufacturers documentation
• All necessary accessories included
• 1492 models meet recognised international IEC, UL, CSA and ATEX standards

Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient distribution of power. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives.

What is a terminal block?

A terminal block is a modular component which secures two or more wires together inside an insulated frame. This keeps wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. They can be easily connected or disconnected within the block which provides easy troubleshooting and maintenance. They can feature different termination types, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-effective type of connector.
