1492-JD4-BL, Rockwell Automation 1492 Series Screw Terminal, 4-Way, 24A, 22 → 12 AWG Wire, Screw Cage Termination

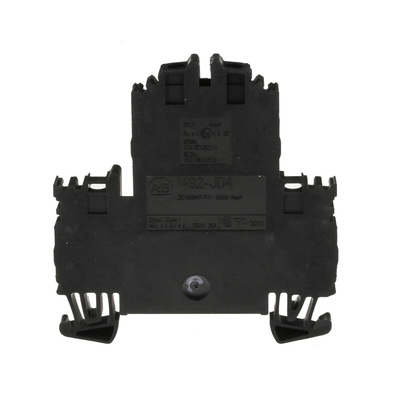

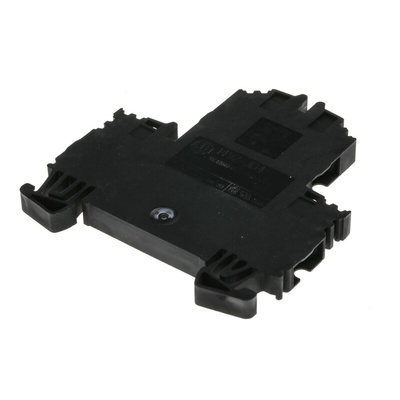

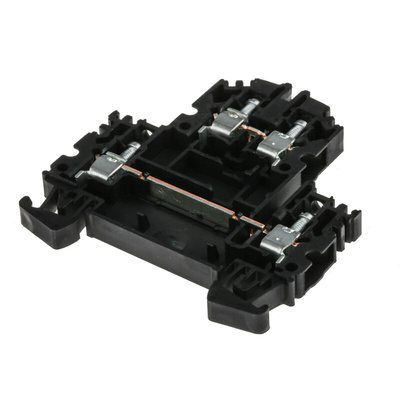

Rockwell Automation IEC 1492-JD4-BL Screw Type Feed-Through Terminal Block

The IEC 1492-JD4-BL Screw Type Feed-Through Terminal Block by Rockwell Automation offers superior protection, easy installation, and high durability all in one module. The 1492-J terminal block family adheres to recognised international IEC standards, ensuring a high-quality solution for your wiring system.

The 1492-JD4-BL unit is a Two-Circuit Feed-Through Terminal Block, in black. It has a housing temperature range of –50 to +120 °C (–58…+248 °F). It can be DIN rail mounted, allowing effortless installation and more efficient organisation of the electrical control cabinet. Risk of electric shock is decreased as it has IP2X finger-safe housing. The 1492-J units provide superior stability due to their secure self-locking screw type clamp design with steel clamps and screws.

The Multi-circuit Feed-through Terminal Blocks are perfectly suited for applications where control signals must be distributed and collected through the same blocks. These modules are a great solution for high-density wiring applications.

Maximum wire size and rating:
UL: 26-10 AWG (35A @600V AC/DC)
CSA: 26-10 AWG (30A @300V AC/DC)
IEC:4mm² (32A @800V AC/DC)

Features and Benefits:

• Compatible with several high visibility snap-in marker tags
• Ideal for high density wiring applications
• 1492 models meet recognised international IEC, UL, CSA and ATEX standards
• Complete catalogue containing essential information included
• Has all the necessary compliance required in the industrial applications of the product as per the manufacturers documentation
• All necessary accessories included

Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient distribution of power. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives.

What is a terminal block?

A terminal block is a modular component which secures two or more wires together inside an insulated frame. This keeps wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. They can be easily connected or disconnected within the block which provides easy troubleshooting and maintenance. They can feature different termination types, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-effective type of connector.

Datasheet - 1492-JD4-BL

Rockwell Automation Terminal Blocks Brochure

Specifications - 1492-JD4-BL
