1492-JG6, Rockwell Automation 1492 Series Screw Terminal, 3-Way, 10A, 22 → 12 Wire, Screw Cage Termination

Rockwell Automation IEC 1492-JG6 Screw Type Feed Through Ground Terminal Block

Improve the safety of your control cabinet with the 1492-J Screw Type Feed Through Ground Block by Rockwell Automation. This DIN rail mounted module is easy to identify and offers durability, dependability, and ease-of-installation to give you absolute peace-of-mind. This feed-through terminal block also meets recognised international IEC standards, offering a high-quality solution for your wiring system.

This space-saving ground bus can be DIN rail mounted, allowing easy installation and organisation of your control cabinet. To minimise risk of electric shock it has IP2X finger safe housing. It also features a secure self-locking screw type clamp design with steel clamps and screws for greater stability.

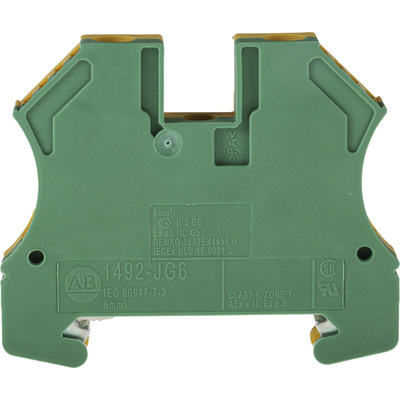

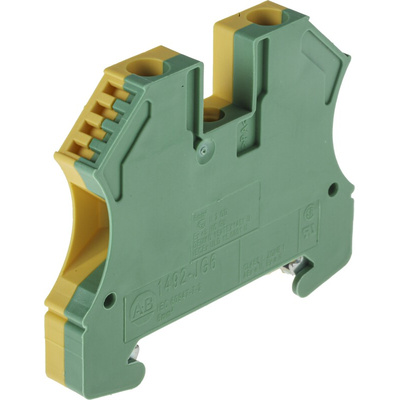

The 1492-JG6 is a One-Circuit Feed-Through Ground Bus in green with a yellow stripe. This terminal module is evaluated by UL for high-fault short-circuit current ratings and can be used in conjunction with fuses, motor protection circuit breakers, and motor circuit protectors in power circuits.

Maximum wire size and rating:

UL: 22-8 AWG
CSA: 22-8 AWG
IEC: 6mm²

Features and Benefits:

• Backed-out screws
• Tin-plated terminal and zinc chromate steel screws
• Four-sided funnel wire guides
• Self-locking screw-type clamp design
• Comes with all necessary accessories
• Comes with a complete catalogue containing all the necessary information required
• Has all the necessary compliance required in the industrial applications of the product as per the manufacturers documentation

Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient distribution of power. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives.

What is a terminal block?

A terminal block is a modular component which secures two or more wires together inside an insulated frame. This keeps wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. They can be easily connected or disconnected within the block which provides easy troubleshooting and maintenance. They can feature different termination types, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-effective type of connector.
